Flexible LED Neon Rope, Colored Jacket, 120VAC
Perimeter Lighting or Edge Lighting — Signage Lighting — Landscape Lighting
Outdoor / Indoor
Ideal for use with Alternate and Renewable Energy Resources like Solar & Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, "Dark Skies" Initiative Compatible
(Green, Yellow, and Orange NeonLED are ordering options for qualified applications and large quantity orders)


RNLD02U Series   Flexible LED Neon Rope; Translucent Colored Glass-Like Appearance in Off Mode

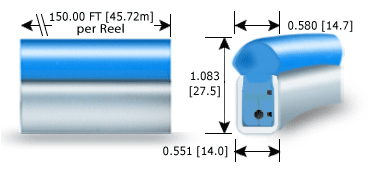

Dimensions in inches [mm]

Neon Rope; Colored Jacket; 150ft-Length Roll
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYInput Voltage, V
(typ)
Power (W)Total
Lumens
Maximum
Candela
DescriptionModule
length
(inches)
LED Spacing
inch/mm
Max Run Length
in Feet
λp, nmLED Emitting
Color
Call
800-579-4875
To ORDER
RNLD02U-0UO-120A-150FT
(UDF 84RE)
Click For Volume Discount Thru Distributor120Vac1.2W / foot; Total = 180W-- lm/ft--cdGlassy Orange JacktCutting Unit: 30-in.0.5" [12.7mm]159' w/1.6A convertr610nm  Orange

Other Colors of Colored Neon Rope (Orange-colored jacket, Yellow-colored jacket, Green-colored jacket) available for large quantity orders

RNLD04U-009 Accessory   End Caps for RNLD01S LED Neon Rope


PVC End Cap, UV Protected, Non-colored Translucent
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD04U-009
(End Cap 38RE)
Click For Volume Discount Thru Distributor


RNLD04U-005 Accessory   T-Shaped Connector with 3 Male Connector Pins

T Middle Connector with 3 Pin Connectors
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD04U-005
(T Connector with 3 Pins 38RE)
Click For Volume Discount Thru Distributor


RNLD04U-010 Accessory   X-Shaped Connector with 4 Male Connector Pins

T Middle Connector with 3 Pin Connectors
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD04U-010
(X Connector 38RE)
Click For Volume Discount Thru Distributor


RNLD04U-007 Accessory   Inside Corner Elbow Connector with 2 Connector Pins

Inside L Corner Connector with 2 Pin Connectors
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY


RNLD04U-006 Accessory   Outside Corner Elbow Connector with 2 Connector Pins

Outside L Corner Connector with 2 Pin Connectors
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD04U-006
(Outside L-connector with 2 pins 38RE)
Click For Volume Discount Thru Distributor


RNLD04U-008 Accessory   L-Shaped Connector with 2 Male Connector Pins

90°-Connector, UV Protected, Non-colored Transparent
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD04U-008
(L-Connector 84RE)
Click For Volume Discount Thru Distributor


RNLD03U-3PC-001 Accessory   Power Feed, Straight 180° config., 5ft long, 120V–1.6 Amp Converter, (with pin connector)

White Power Cord, Translucent Connector, Indoor/Outdoor Use
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD03U-3PC-001
(5FT Power Cord Neon Rope,1.6A 38RE)
Click For Volume Discount Thru Distributor


RNLD06U-5CM-001 Accessory   Aluminum Mounting Channel with 2 Screws

(recommended 4 pieces per meter to secure to surface)

Metal Guiding Clip for NeonLED
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD06U-5CM-001
(5cm Mtg. Channel, 0.55" Width 73RE)
Click For Volume Discount Thru Distributor


RNLD04U-001 Accessory   Splicing Kit: Shrink Tube with 2-way-Pointed-End Connector Pins

Water-resistant Straight Middle Connectorwith 2 Pin Connector
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUY
Call
800-579-4875
To ORDER
RNLD04U-001
(Indoor Straight Middle Connector 29RE)
Click For Volume Discount Thru Distributor


All specifications and pricing subject to change without notice.
Features:
  • One Year Warranty
  • Fast Field Installation without the Specialized Labor Required for Neon
  • Bright Neon-like Glow with Consistent Color and No Hot Spots
  • Flexible: Bends by Hand to Any Angle within up to a 1.5in. [40mm] Bending Radius
  • Temperatures Below Freezing Do Not Affect Performance
  • Far Less Subject to Damage During Installation and Operation
  • No Environmentally Hazardous Substances Such as Mercury
  • Indoor/Outdoor Use
  • PVC Material is UV Protected
  • Low Power Consumption: 1.2 watts per foot
  • Long Life: 50,000+ Hours
  • Waterproof IP68: Except Open Ends
  • Cut Marks Every 18 inches, (30 inches for red)
  • Maximum Loading Length: 159ft with 1.6Amp Converter
  • Smallest Bend Radius: 1.5 inch [40mm]
  • Weight: 0.336 lb/ft [500g/meter] (50.4lb/150ft Reel [22.86kg/45.72meter Reel])
Options:  For qualified applications and large quantity orders
  • Optional NeonLED Colors: Yellow, Orange, Green
  • 240VAC-to-1.6Amp in all Power Converters
  • 28VDC-to-1.6Amp in all Power Converters
  • 90° Down-Angled Elbow Power Feed, 5' Cord,
  • 90° Side-Angled Elbow Power Feed, 5' Cord,
  • Cross-Shaped X Connectors (Meeting at 90°)
  • Jumper Cables from 4in., 6in., 1ft, 2ft, 4ft, 6ft, 8ft, 12ft, and custom lengths)
  • Longer Mounting Channels
Applications:
  • Outdoor or Indoor Use
  • Signage Letters or Store Fronts
  • Perimeter or Border Lighting
  • Safe Alternative for Glass Neon Tube Lights
  • Outlining Buildings, Counters, Walkways, Landscaping, Gardens, Decks, Cabinets, Furniture
