High Quality Solar Panel, Monocrystalline, 5 to 100 Watt Size


Peak Power Up to 50% Above Cheap Import Panels


Lower Cost Based on Peak Power, Clean Renewable Off-Grid Power Source

Place on Carport Covers, Building or Home Rooftops

Ideal for Use with Landscape, Garden or LED Lighting Systems

  • Two Year Warranty
  • ISO 9001

For qualified applications and large quantity orders

  • Other Wattages
  • 24V Versions
  • Available With Wire Leads
  • Major Energy Savings: Reduces Dependence on the Main Electrical Grid
  • Extendable: Multiple Panels Can Be Connected Together in an Array for Even More Power
  • Easy to Install and Virtually Maintenance-Free
  • Investment: Installing a Solar Panel System Can Increase a Home’s Value
  • Choice: A Selection of Sizes for Different Wattage and Voltage Requirements
  • Clean, Green Energy from the Sun

Irradiance Level: 1000 W/m2
Air Mass (AM): 1.5
Cell Temperature: 25°C

Solar Power Modules

  SLR-PNL
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYMaximum Power Rating
Pmax
Rated Voltage
Vmax
Rated Current
Imax
Open Circuit Voltage
Voc
Short Circuit Current
Isc
Dimensions,
mm (typ)
Weight, lbs [kg] Approx.
SLR-PNL-5W-101
(12V/5W Monocrystalline NR)
$15.50ea1 7.20 W15.0 V0.48 A19.5 V0.52 A193×320×27.4mmabt 2.2 lbs [1.0 kg]
Eng File:Engineering File
Brochure:Brochure
CALL 800-579-4875Volume Discount Thru Distributor
Electrical / Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYMaximum Power Rating
Pmax
Rated Voltage
Vmax
Rated Current
Imax
Open Circuit Voltage
Voc
Short Circuit Current
Isc
Dimensions,
mm (typ)
Weight, lbs [kg] Approx.
CALL 800-579-4875SLR-PNL-10W-101
(12V/10W, Monocrystalline)
Volume Discount Thru Distributor12.60 W15.0 V0.84 A20.5 V0.88 A307×358×27.4mmabt 3.52 lbs [1.64 kg]
Eng File:Engineering File
Brochure:Brochure
 Electrical / Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYMaximum Power Rating
Pmax
Rated Voltage
Vmax
Rated Current
Imax
Open Circuit Voltage
Voc
Short Circuit Current
Isc
Dimensions,
mm (typ)
Weight, lbs [kg] Approx.
SLR-PNL-25W-101
(12V/25W, Monocrystalline NON)
$68.00ea1 36.10 W15.0 V2.40 A21.0 V2.50 A434×663×27.4mmabt 7.7 lbs [3.5 kg]
Eng File:Engineering File
Brochure:Brochure
CALL 800-579-4875Volume Discount Thru Distributor
Electrical / Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYMaximum Power Rating
Pmax
Rated Voltage
Vmax
Rated Current
Imax
Open Circuit Voltage
Voc
Short Circuit Current
Isc
Dimensions,
mm (typ)
Weight, lbs [kg] Approx.
SLR-PNL-50W-101
(12V/50W Monocrystalline PND )
$121.00ea1 69.0 W15.0 V4.60 A21.5 V4.80 A663×790×27.4mmabt 12.77 lbs [5.8 kg]
Eng File:Engineering File
Brochure:Brochure
CALL 800-579-4875Volume Discount Thru Distributor
Electrical / Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYMaximum Power Rating
Pmax
Rated Voltage
Vmax
Rated Current
Imax
Open Circuit Voltage
Voc
Short Circuit Current
Isc
Dimensions,
mm (typ)
Weight, lbs [kg] Approx.
SLR-PNL-100W-101
(12V/100W Monocrystalline PND)

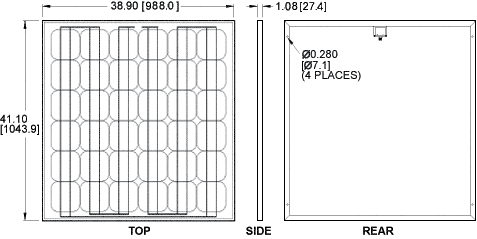

$240.00ea1 135.0 W15.0 V9.0 A22.0 V9.20 A1044×988×27.4mmabt 24.5 lbs [11.15 kg]
Eng File:Engineering File
Brochure:Brochure
CALL 800-579-4875Volume Discount Thru Distributor
Electrical / Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYMaximum Power Rating
Pmax
Rated Voltage
Vmax
Rated Current
Imax
Open Circuit Voltage
Voc
Short Circuit Current
Isc
Dimensions,
mm (typ)
Weight, lbs [kg] Approx.
CALL 800-579-4875SLR-PNL-100W-201
(24V/100W Monocrystalline PND )
Volume Discount Thru Distributor135 W30.0 V4.50 A42.5 V4.70 A1044×988×27.4mmabt 30.9 lbs [14.0kg]
Eng File:Engineering File
Brochure:Brochure
 Electrical / Optical Characteristics (Ta = 25°C)
*Dimensions may vary from listed due to Solar Cell availability. If out of stock then delivery is typically 4 weeks

All specifications and pricing subject to change without notice.


Features

  • Product Warranty: 2-Year Full Quality Warranty / 10-Year Limited Power Performance Warranty
  • Cell Type: Monocrystalline Silicon Photovoltaic Cell
  • Encapsulation Method: High-Efficiency Design Minimizes Transmission Tempered Glass with Anodized Aluminum Frame Sealed with EVA & Silicone
  • Panel Construction: High-Weight While Providing a Durable, Protective Environment for the Solar Cells
      Frame Material: Light-Anodized Aluminum Alloy
      Front Cover: Low-Iron Anti-Glare Tempered Glass
  • Weatherproof: Front & Rear Surfaces and Junction Box Completely Sealed from Moisture with Silicone Sealant
  • Meets IP65 Requirements: Totally Protected against Dust; Protected against Low-Pressure Jets of Water from All Directions.
  • Certifications: ISO 9488 (Solar Energy - Pending), ISO 9001:2008, IEC 61730 (Module Safety - Pending)

Applications

  • Secondary Home Power System / Remote Power
  • Electrical Power Back-Up System
  • On-Grid Commercial / Industrial Rooftops
  • Off-Grid Power System
  • Marine & Boating
  • Recreational Vehicle or Motor Homes / Cabins
  • Battery Charging
  • Pumps / Pool Heating
  • Beacons / Satellite Dishes
