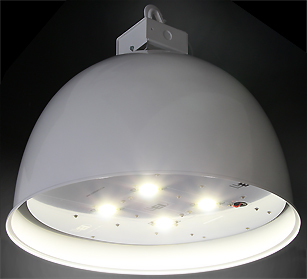

LED High Bay Warehouse Lighting Fixture


Only 97 Watts Replaces Up to 400 Watt MH or HPS Lamps


90 to 305VAC — 10,621 Lumens Over 70% Energy Savings — Wide Beam Spread

Major Energy Savings, Long Life

Green Technology, Mercury Free
LED high bay lighting from LEDtronics
Meets Buy American requirements within the ARRA
American Reinvestment and Recovery Act

  • Products on this page are
    Made In USA
    from imported parts
  • FIVE YEAR WARRANTY
  • DLC
  • Lighting Facts
  • ROHS
  • INSTALL INSTRUCTIONS
  • ISO 9001
  • ETL Listed, US & Canada logo
  • Part Number: HBL001-4X60W-XPW-001
  • 50% Field of View: 115°
  • Line Input Voltage: 100-305VAC, Tested @ 120VAC
  • Input Current: 0.810A
  • Power Used: 97 Watts
  • Emitted Color: Pure White
  • Color Temperature: 4745K ~ 5310K
  • Color Rendering Index: 70
  • Power Factor: 0.99
  • Total Lumens: 10,621 lm
  • Efficacy: 109 lm/W
  • Max. Candela: 3,705cd
  • Ambient Temperature: ~-22°F to ~+122°F
    [~-30°C to ~+50°C]
  • Dimensions: Base Ø22.13” [Ø562.1 mm], Height 27.9” [709 mm]
  • Weight: 18.35 lbs / 8.32 Kg
  • Listed on the DesignLights™ Consortium Qualified Product List
  • Lamp Warranty: 5 Years
  • Low Power Consumption: Only 97 Watts
  • Long Life: Lumen Maintenance of the White LEDs Is Greater than 70% at 50,000 Hours of Operation.
    (Rated Average Life Based on Engineering Testing and Probability Analysis)
  • Wide Input Voltage Range: 90 to 305VAC
  • Protective Wire Guard: Use of guard optional when not mandated.
  • Instant-On Light: No Delay in Re-Strike
  • High CRI Enhances All Colors
  • Super Intensity: 3,705 candela
  • Optimized Circuitry: Power Factor Corrected for Maximum Efficiency
  • Input Power Surge Protection: Onboard 40kA Varistor
  • Solid-State: High-Shock- & High-Vibration-Resistant
  • Wide Ambient Operating Temp. Range:~-22°F to ~+122°F ~-30°C to ~+50°C
  • Safety Assurance: ETL Listed
  • Eco-Friendly: RoHS Compliant
  • Highest-Grade LEDs: Uses Premium LEDs that Meet LM-79/LM-80 Requirements*
* LM79 Test on File
    High-Bay Indoor Lighting for:
  • Warehouses
  • Big-Box Stores
  • Convention Centers
  • Gymnasiums
  • Indoor Arenas
  • Major Energy Savings: Over 70% Compared to MH and HPS Lamps
  • Low Maintenance: Reduces Re-lamp Frequency and No Ballast Replacement Costs
  • Eco-Friendly: No Hazardous Materials
  • No Hazardous Emissions: No UV or IR Radiation – Does Not Attract Insects
  • Even Lighting: High Intensity / No Halation
  • Instant Light: No Flicker, No Delayed Startup Time
  • Cool Operation: Generates Minimal Heat Compared to MH and HPS Lamps

White LED technology is patent protected in the United States. LEDtronics white LED products are covered under these patents.

LED High Bay Lighting, High Power Luminaire

  HBL001
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Power (W)Current (A)Power FactorTotal
Lumens		Efficacy
lm/W		Maximum
Candela		CRIColor Temp.
(Kelvin)		Weight, lbs [kg] Approx.LED Emitting
Color		Viewing
Angle‡‡
Call
800-579-4875
To ORDER		HBL001-4X60W-XPW-001
(90~305VAC,White PND)		Click For Volume Discount Thru Distributor90 to 305VAC
(Tested @ 120VAC)		96.7 W0.810 A0.9910619 lm1093705 cd744745 to 5310K18.35 lbs [8.32kg]  Pure White115°
Photometrics: PDF  IES File
Eng File:Engineering File
Brochure:Brochure
  Electrical / Optical Characteristics (Ta = 25°C)
‡‡Full Beam Width at 50% Intensity

All specifications and pricing subject to change without notice.
