LED Module String, 12V, 2 LEDs/Module, ~42×15×8mm
for Signage and Backlighting
For Channel Letters, Signage, Display Cases, Architectural Lighting
Energy-Efficient, Incandescent or Fluorescent Replacement — Only 0.5 Watts/Module



White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.

STP301S-1X2_W-012V Series   12Volt Interconnected Modules (2 LEDs per Module)

Wires: Bipolar, 22AWG (7Amp Max Capacity)
Mounting Tape Included (Screws not included)

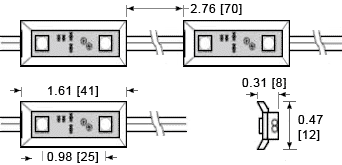

Dimension in inches [mm]
  • Module-to-Module on Centers: 4.3 inches [110mm]
  • Uses Existing Tape on Backside of Module. (Mounting screws not included)
  • Wires: White Bipolar, either wire can serve as positive or negative
  • Can run from 1 (one) STP301S-1X2 Module to 175 Modules, Maximum.
  • IP 68 Rating Enclosure: Dust proof, protected from continuous immersion in water 1 meter deep for 30 minutes

42mm×12mm×8mm
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYInput Voltage, V
(typ)
Watts
per Module
Current
Per Module, A
Maximum
Candela
Total
Lumens
Operating
Temperature
Color Temp.
(Kelvin)
LED Emitting
Color
Viewing
Angle‡‡
Max Modules
per String &
Power Supply
Description
STP301S-1X2-TIW-012V
(12VDC,W.White,3000K,40x12mm NON )
$1.99ea100 12Vdc0.4W0.030 A9.8cd29 lm~-30°C to ~+80°C3000K  Warm White110°175 Modules Max41x12x8 mm

2 strings of 50 modules per package
[100 modules / package]
STP301S-1X2-TCW-012V
(12Vdc,C.White,9000K,40x12mm NR)
$1.91ea100 12Vdc0.5W0.040 A12.1cd37.5 lm~-30°C to ~+80°C9000K  Cool White120°175 Modules Max41x12x8 mm

2 strings of 50 modules per package
[100 modules / package]
Call 800-579-4875 To ORDERClick For Volume Discount Thru Distributor

‡‡Full Beam Width at 50% Intensity


STP301S-1X2-0_012V Series   12Volt Interconnected Modules (2 LEDs per Module)

Wires: White (+), Black (-), 22AWG (7Amp Max Capacity)
Mounting Tape Included (Screws not included)

Dimension in inches [mm]
  • Module-to-Module on Centers: 4.3 inches [110mm]
  • Uses Existing Tape on Backside of Module. (Mounting screws not included)
  • Wires: White (+), Black (–), 22AWG
  • Can run from 1 (one) STP301S-1X2 Module to 175 Modules, Maximum.

42mm×15.6mm×5mm
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYInput Voltage, V
(typ)
Watts
per Module
Current
Per Module, A
Total
Lumens
Operating
Temperature
λp, nmLED Emitting
Color
Viewing
Angle‡‡
Description
STP301S-1X2-0ER-012V
(12VDC,Red,42x15.6mm 38RE)
$2.34ea100 12Vdc0.5W0.040 A2 lm~-30°C to ~+80°C633nm  Super Red140°42x15.6x5 mm

2 strings of 50 modules per package
[100 modules / package]
STP301S-1X2-0PY-012V
(12VDC,YELLOW,42x15.6mm7RoHSVC042109)
$2.34ea100 12Vdc0.5W0.040 A--~-30°C to ~+80°C592nm  Pure Yellow140°42x15.6x5 mm

2 strings of 50 modules per package
[100 modules / package]
STP301S-1X2-0AG-012V
(12VDC,A.GREEN,42x15.6mm 38RE)
$2.34ea100 12Vdc0.5W0.040 A--~-30°C to ~+80°C525nm  Aqua Green120°42x15.6x5 mm

2 strings of 50 modules per package
[100 modules / package]
STP301S-1X2-0PB-012V
(12VDC,BLUE,42x15.6mm 38RE)
$2.34ea100 12Vdc0.5W0.040 A2 lm~-30°C to ~+80°C470nm  Pure Blue140°42x15.6x5 mm

2 strings of 50 modules per package
[100 modules / package]
Call 800-579-4875 To ORDERClick For Volume Discount Thru Distributor

‡‡Full Beam Width at 50% Intensity


  Accessories: Power Adapting
Power Connectors, AC-to-DC Power Supplies, DC-to-DC Dimmer
Power Connectors
AC-to-DC Power Supplies
DC-to-DC Dimmer


All specifications and pricing subject to change without notice.
Features:
  • One Year Warranty
  • Each module contains two sealed super-bright wide-angle surface mount LEDs for maximum intensity
  • Hard wire connection between the LED modules means the module string is more durable in outdoor applications
  • Requires 12V Regulated Power Source
  • Can run 1 LED module up to 175 LED modules Max.
Applications:
  • Channel letter signs
  • Reverse channel letter signs
  • Indirect accent decor lighting
  • Architectural lighting
  • Large area back lighting
  • Under counter lighting
  • Display cases
  • Under-Cabinet Lighting in Kitchen
  • Cove Lighting
  • This is a molded unit with insulated wires
