LED Light Bulb, GU10 Style, Warm or Pure White, Consumes Only 3-5.2Watts
80 to 260VAC Voltage Range • 20° or 30° Beam • GU10.3 Base
Direct Drop-In Replacement in GU10 Fixtures — Up to 90% Power Savings
Ideal for use with Alternate and Renewable Energy Resources like Solar & Wind Power
Major Energy Reduction, Reduces Light Pollution, "Dark Skies" Initiative Compatible
Shopping Cart
View Cart
Check Out
LED track spotlight in GU10 fixture, UV-free and cooler runningNOTE: ALL 12-VOLT AC/DC and 80-260 VAC BULBS ARE FOR USE WITH STANDARD ON/OFF SWITCHES ONLY. Use with any type of dimmer, relay or other current/voltage control circuit device will VOID WARRANTY.

GU10 LED bulbs with three-year warranty
Features
Options
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:





VIDEO:
Windows Media Player: Broadband
All Series under this Category:
  GMR16-5W White LED GU10 Bulb 80-260VAC Narrow Beam
  GU10-6W White LED GU10 Bulb 100-260VAC Standard Beam
GMR16 Series   GU10-Style LED Bulb
LED Bulb, GU10, 3 Watt, 3 High Power LEDs, Warm WhiteGU10 LED Spotlight Dimensions
Warm White, 3000-3200K Color Temp, Standard-Beam 20º Spotlight, 80VAC to 260VAC1S907M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Current, AEnergy Used,
W		Total
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
GMR16-5W-XIW-003S
(80-260Vac,W.White,3000K 7R) 		$46.80ea 1 80-260VAC0.048A3.0 typ, 5.2 max123 lm1045cd40.9na3000K    Warm White20°±3°

GU10 Series   GU10-Style LED Bulb

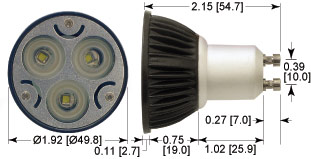

GU10-style LED tracklight with bipin baseGU10-style LED tracklight dimensions
Warm White, 3000K Color Temp, Medium-Beam Spotlight, 100VAC to 260VAC1S983M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Current, AEnergy Used,
W		Total
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
GU10-6W-XIW-003M
(100~260VAC,W.White,3000K,40deg, {RE}) 		$34.90ea 1 100-260VAC0.064A5.2 typ, 5.2 max161 lm444cd30.90.6803000K    Warm White30°±3°

Cool White, 6000K Color Temp, Medium-Beam Spotlight, 100VAC to 260VAC2S983M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Current, AEnergy Used,
W		Total
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
GU10-6W-XPW-003M
(100~260VAC,P.White,6000K,40deg,CE/ {RE}) 		$34.90ea 1 100-260VAC0.061A5.0 typ, 5.2 max173 lm553cd34.70.6806000K    Pure White30°±3°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Major Power Savings
  • Constant Light Output
  • Solid-State, Fast Turn-On, No Power Surge
  • Replaces 20 to 30 Watt Incandescent MR16/GU10 Bulb
  • White LED Operating Life: 50,000+ hrs (5.7+ years)
  • No Ultraviolet or Infrared Emission
  • High Shock / Vibration Resistant, Both Electrical and Mechanical
  • Designed for Linear and Switching "Clean" Power Supplies
  • Easy Installation, Using Existing MR16/GU10 Fixture
  • UV Stabilized Plastic Lens, Metal Body
  • Stays cooler than Other 5W MR16 Bulbs
  • ROHS Compliant, CE Certified
  • High CRI
  • Weight of GMR16-5W Series : 0.138 lb, [62.4g]
  • Weight of GU10-6W Series : 0.100 lb, [45.4g]
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Options:  For qualified applications and large quantity orders
  • Other Colors available for large quantity orders
 Applications:
  • Track Lighting
  • Spot Lighting
  • Display / Cabinet Lighting
  • Architectural Lighting
  • Art Gallery and Museum Lighting

LED display lighting, gallery light
Bust of George Washington, by Jean-Antoine Houdon		 Architectural accent lighting with LED GU10 bipin bulbs
Architectural lighting
Incandescent Lumens & Spherical Candle Power (SCP) for Reference
Incandescent Total Lumens Spherical Candela Efficacy lm/W Incandescent Total Lumens Spherical Candela Efficacy lm/W
INCAND,S6,4W,CLR 7.83 .623 2.02 INCAND,15W, A15, White FRST 90 6 6.00
INCAND,S6,6W,CLR 33.80 2.69 5.20 INCAND,25W, G16-1/2, CLR 169 13.5 6.76
INCAND,S6,7W,CLR 29.75 2.36 4.27 INCAND,25W, A15, White, DIFF 179 14 7.16
INCAND,11W, S14, CLR 65 5.2 5.91 INCAND,25W, A15, White, FRST 101 8 4.04
INCAND,11W, S14, White, DIFF 44 3.5 4.00 INCAND,B11/E14,40W,FRST 342.80 27.28 8.40
INCAND,B11/E14,15W,CLR 54.71 4.353 3.65 INCAND,60W, A19, White, FRST 820 48 13.66
INCAND,B11/E14,25W,CLR 221.90 17.66 8.81 INCAND,60W, A19, CLR 870 58 14.50
INCAND,B11/E14,60W,CLR 545.10 43.37 8.96 INCAND,25W, 25T10F, FRST 220 17 8.80
