Indoor Lighting Plant-Growing 5-Cluster LED-PlantPro5
Energy Efficient • Low Heat • Targeted Light Output • Lower Burn and Fire Risk
Shopping Cart
View Cart
Check Out
AquariumBar; An LED Light Source for Aquatic Biota Indoor Lighting Plant-Growing 5-Cluster Indoor Lighting Plant Growing LED-PlantBars
Features
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Based on our patented LED grow light technology, the LED-PlantPro5 supports the growth and development of all photosynthesizing organisms (plants, algae, and bacteria) commonly found in hobby, commercial, and scientific areas of interest.
For the serious horticulturalist, the LED-PlantBar5 provides excellent primary and supplemental grow lighting for all types of commercial and scientific growing needs. Cool operation prevents unwanted heating of environment. The LED-PlantPro5 grow light bar provides an excellent addition as supplemental lighting to existing HID, MH, or HPS glass greenhouses.


Dimensions in inches [mm]
The wavelengths of light emitted by our LED plant light products are invisible to most pests. By design,
these LED-PlantBars rarely attract bugs and pests to the plants.
All Series under this Category:
  LED-PLANTPRO5 5 Cluster Plant Light Bar Kits
  PWR-PLANTBAR-002 AC-DC Adapter LED-PLANTBAR Power Supply
  CONN-PLANTBAR-001 13.75in. Interconnecting Cables
  LED-PLANTRACK Frame for 3 to 8 LED-PlantBars
LED-PLANTPRO5 Series   5-Cluster LED-PlantPro5 Kits
Kit of 1 LED-PlantPro5 with Power Supply & Power Cord 1S1690M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
TO ORDER, CALL US
@ 800-579-4875 		LED-PLANTPRO5-001
(STOCK ONLY {RE}) 		CALL

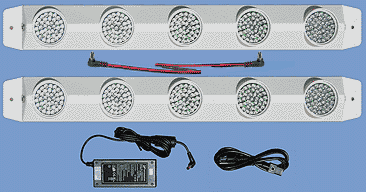

Kit of 2 LED-PlantPro5s with 1 Power Supply, 1 Power Cord, & 1 Connector Cable2S1690M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
TO ORDER, CALL US
@ 800-579-4875 		LED-PLANTPRO5-002
(STOCK ONLY) 		CALL

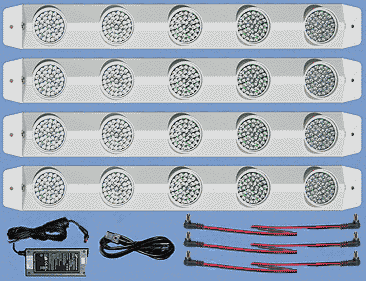

Kit of 4 LED-PlantPro5s with 1 Power Supply, 1 Power Cord, & 3 Connector Cables3S1690M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
TO ORDER, CALL US
@ 800-579-4875 		LED-PLANTPRO5-004
(STOCK ONLY) 		CALL

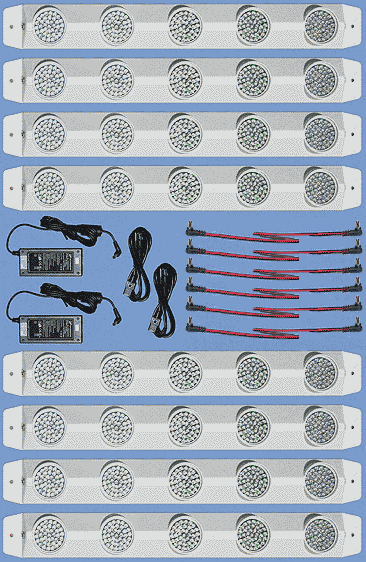

Kit of 8 LED-PlantPro5s with 2 Power Supplies, 2 Power Cords & 7 Connector Cables4S1690M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
TO ORDER, CALL US
@ 800-579-4875 		LED-PLANTPRO5-008
(STOCK ONLY) 		CALL

PWR-PLANTBAR-002 Accessory   AC-DC Adapter Power Supply
Comes with 6ft Power Cord with American-style 3-prong, bi-blade plug that connects the Adapter to your wall socket/power source. EU ApprovedThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and this device must accept any interference, received, including interference that may cause undesired operation.

SPECIFICATIONS:  • Input: 100V to 240V ~ 1A 50/60Hz. With plug adapter* can run on any country's current.  • Output: 24VDC, 40Watt • Plug specs: Center positive 5.5mm O.D., 2.1mm I.D., 9.5mm length • Cord length: 59".±0.8" [1500mm±20mm]
* Plug adapters are available from distributors of electronic parts
Accommodates 1 to 4 LED-PLANTBARs connected serially1S1920M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
PWR-PLANTBAR-002
(***STOCK ONLY) 		$26.10ea 1

CONN-PLANTBAR-001 Accessory   Interconnecting Cables for LED-PLANTBARs
Length: 13.75in. [349mm] from plug base to plug base
LED-PLANTBAR Interconnecting Cables1S1358M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
CONN-PLANTBAR-001
(STOCK ONLY 7RoHSVC052009) 		$14.25ea 1

LED-PLANTRACK Accessory   Aluminum Frame Rack Pair for Groups of LED-PlantBars

Rear view of rack with 8 light bars
(bars not included)
Mounting tabs allow for hanging and bolting frames together. Assembly Required.
(Pictured suspending chains not included, LED-PlantBars not included)

Light bars mount to the sturdy aluminum frame kit, attaching securely with 2 bolts per light bar. Staggered light bar configuration provides uniform light energy.

Kit includes 2 aluminum frame pieces for attaching bars and S-hooks for easy hanging. (Suspending chains not included)
PlantRack Frame Accomodates 3 to 8 LED-PLANTBARs1S1357M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
TO ORDER, CALL US
@ 800-579-4875 		LED-PLANTRACK-001
(STOCK ONLY RoHSNOTREQD050207) 		CALL

All specifications and pricing subject to change without notice.
 Features:
  • One Year Warranty
  • Very low heat generation
  • No ballast required
  • No reflectors
  • Targeted light output
  • High shock/vibration resistance
  • Typical LED lifetime of 100,000 hours
  • Power consumption less than 9 Watts
  • Lower voltage (after passing through power supply)
  • Lower burn and fire risk
  • Light weight
  • Less environmental hazard. LED-PlantBars contain no mercury
  • Power supply accepts range of 100Volts AC to 240 Volts AC through American-style bi-blade plugs. Simple plug adapter will convert any country's plug style.
 Applications:
  • Interior landscape design
  • Commercial plant growing
  • Grow plants at home in sunless areas
  • Can be mounted in any orientation to light crops from top, sides, or within plant canopy
  • Herb gardens, lettuce gardens under kitchen cabinets

An LED-PlantBar array attached to a supporting structure		   
Special mounting tabs allow
multiple frames to be bolted
together and suspended from S-hooks.
 
Introduction to LED-Based
Plant Growing		  PlantLED
Technology 		  LED Plant Light
Technology Comparison		  FAQs  LED Plant LightBar
Advantages		  Daylight Sensitivity
Spectrums
    NOTES
    LED based grow lights present a challenge when replacing traditional grow lights. LEDs are low energy devices (like fluorescent lights), this means that they must be closer to the plants than high energy sources (like HPS or MH lights).

    But there's a trade off between close and coverage. Because LEDs output a "cone" of light, closer means a decrease in coverage. So a balance must be attained between desired energy at the plant and coverage in square feet.

    Some plants require higher energy (plant closer to bar) and thus for coverage you'll need to use more bars in an offset stagger multiple bar configuration to increase coverage. Some plants require low energy to grow, so fewer bars at a greater distance are possible. LED-PlantBars may also be hung vertically within the foliage of a dense plant for additional energy (a big selling point as traditional lights cannot do this).
    GARDENING TIPS FOR USING LEDTRONICS LED-PLANTPRO5 GROW LIGHTS
    These tips come from proven experience and should be followed when possible to ensure success with LED professional grow lights. This information applies to both the use of individual light bars, and light bars mounted in multiple bar arrays.
    Temperatures
  • Keep environmental temperatures in the range of 70°F – 80°F. (Lower temperatures = Slower plant growth.) You should also monitor root zone temperature as well.
    Watering
  • DON’T over water your plants. (Less heat from light source = Less water loss to evaporation). (Over watering = Slow root development = Slow and stunted growth). Over watering will also cause nutrient uptake issues (you are feeding your plants, right?).
  • Watering rates using LED-PlantBars versus conventional white light: Water plants once and monitor the longer time it takes for them to run low on water to determine your particular plant specie's rate of water usage.
  • Keeping the root medium water saturated = No need for the plant to develop a larger root system = Stomata closure, slow and stunted growth, and symptoms of over watering.
  • Using a more porous medium = More oxygen to roots = Higher plant metabolism.

    • Nutrients and CO2
  • Start with a lower amount of nutrient (400-600ppm) or half the recommended amount.
  • When commercial growing: Monitor your CO2 levels. LED lights emit a large amount of absorbed light, which may require slight augmentation of CO2 levels (300-500ppm).

    • Lighting
  • Remember, it doesn’t look like much light to you, but it is a lot of light to your plants.
  • With fruiting plants: Reduced photoperiod = Plant stress = More flowering.
  • If your plants are grown indoors without supplemental light, some plants—such as tomatoes—may benefit from the addition of a single 60Watt light placed anywhere in the room with the plants. This provides a small amount of invisible infrared light which some plants find beneficial.
  • Don’t forget, your plants need to sleep just like we do, except plants prefer that the room be totally dark at night. Check on the internet or with a local nursery to find out the preferred light/dark period for the plants that you’ll be growing.

    • Safety
  • The light emitting diodes (LEDs) used in this product are very high intensity. Never look directly into the light at close distance, or for long periods of time.
