LED Miniature Bulbs, Warm White, Bayonet Base, Ba9s (T3¼)
6V to 48V DC Flexible Voltage Smart Bulb
Direct Incandescent Replacement — Up to 90% Energy Savings
Replaces Incandescent: — (5/6V) 6MB, 44, 47, 755; — (12/14V) 12MB, 756; — (24V) 24MB, 313, 757, 1819, 1829; — (48V) 48MB
Product Datasheet

White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.

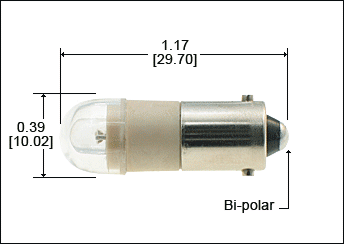

B320 Series

9mm Bayonet
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Current (A)Power (W)Maximum
Candela		Operating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Viewing
Angle‡‡
B320-XIW-6/48V
(6-48VDC,W.White,Ba9s {15RE})		$9.22ea10 6 to 48Vdc DC0.009A@48VDC0.43W3.000cd~-30°C to ~+50°C3000K  Warm White40°
‡‡Full Beam Width at 50% Intensity


All specifications and pricing subject to change without notice.
Features:
  • Three Year Warranty
  • Maintenance Free, Easy Installation
  • Low Power, High Intensity
  • Sunlight Visible
  • Solid-State, High Shock and Vibration Resistant
  • Long Life: 50,000+ Hours
  • Colors Do Not Fade with Use
  • Works Behind all Lens Colors
  • Center Contact Polarity: Bipolar
  • 5mm (T1¾) Xtra Warm White LED
Applications:
  • Replaces Incandescent: • (5/6V) 6MB, 44, 47, 755; • (12/14V) 12MB, 756; • (24V) 24MB, 313, 757, 1819, 1829; • (48V) 48MB
  • Indicator lights for instrumentation
  • Panel-mount pilot lights
