StripLED™ Connectable LED Modules
For Channel Letters, Signage, Display Cases, Architectural Lighting
Energy-Efficient, Incandescent or Fluorescent Replacement

◄Enclosed Signage Letter with StripLED Modules

◄Opened Signage Letter with 7 StripLED Modules



White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.

Each strip comes with 1 (one) Module Inter-connector CONN-WIRE-STP301-3 and double-sided foam tape.

STP301 Series


Required Power Source:
Regulated 12Vdc (red, yellow) or
16Vdc (white, green, blue) Power Supply
Dimensions in inches [mm]

StripLED™ Connectable LED Modules
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Watts
per Module		Current
Per Module, A		Maximum
Candela		Max Modules
per 1 Amp		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color		Viewing
Angle‡‡		Description
Call
800-579-4875
To ORDER		STP301-4-XIW-016V
(WHT,4-LED Module+ConnNON-RoHSVC010207)		Click For Volume Discount Thru Distributor16Vdc0.32W0.020 A3.000cd503000K  Warm White80°Five (5) module+connector
combinations
per package
Call
800-579-4875
To ORDER		STP301-4-XCW-016V
(WHT,4-LED Module+Conn {29RE})		Click For Volume Discount Thru Distributor16Vdc0.32W0.020 A3.000cd507000K  Cool White80°Five (5) module+connector
combinations
per package
Call
800-579-4875
To ORDER		STP301-4-0ER-012V
(RED,4-LED Module+Conn {RE})		Click For Volume Discount Thru Distributor12Vdc0.24W0.020 A0.750cd50636nm  Super Red80°-90°Five (5) module+connector
combinations
per package
Call
800-579-4875
To ORDER		STP301-4-2AG-016V
(GRN,4-LED Module+Conn {29RE})		Click For Volume Discount Thru Distributor16Vdc0.32W0.020 A0.550cd50525nm  Aqua Green80°Five (5) module+connector
combinations
per package
Call
800-579-4875
To ORDER		STP301-4-XAG-016V
(16VDC,Sp.Green)		Click For Volume Discount Thru Distributor16Vdc0.32W0.020 A2.500cd50525nm  Aqua Green75°Five (5) module+connector
combinations
per package
Call
800-579-4875
To ORDER		STP301-4-2PB-016V
(BLU,4-LED Module+ConnNON-RoHSVC031607)		Click For Volume Discount Thru Distributor16Vdc0.32W0.020 A0.120cd50470nm  Pure Blue80°Five (5) module+connector
combinations
per package
Call
800-579-4875
To ORDER		STP301-4-XPB-016V
(BLUE,4-LED Module+Conn {38RE})		Click For Volume Discount Thru Distributor16Vdc0.32W0.020 A0.750cd50470nm  Pure Blue75°Five (5) module+connector
combinations
per package
‡‡Full Beam Width at 50% Intensity


PWR-LP1020-12 Accessory   20W Modular Power Supply: 100 ~ 277Vac Range to 12Vdc/1.66A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PWR-LP1020-12
(100-277Vac,12VDC@1660mA,20Watts {38RE})
Click For Volume Discount Thru Distributor

PWR-LP1025-12 Accessory   25W Modular Power Supply: 100 ~ 240Vac, 277Vac to 12Vdc / 2.08A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PWR-LP1025-12
(100-277VAC,12VDC@2800mA, {RE})
Click For Volume Discount Thru Distributor

PWR-12VCV-3.33A-PF Accessory   40W Modular Power Supply: 100 ~ 277Vac to 12Vdc / 3.33A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)


Convert to 12Vdc
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PWR-12VCV-3.33A-PF
(12VDC-3.33A,40W,IN 100-277VaC,PF0.9{29R)
Click For Volume Discount Thru Distributor

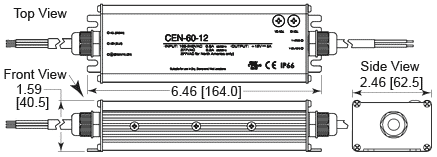

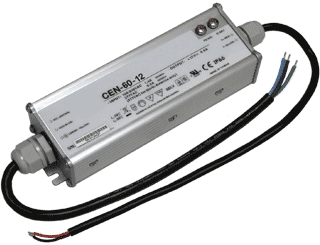

PWR-LP1060-12 Accessory   60W Modular Power Supply: 90 ~ 295Vac to 12Vdc / 5A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY

PWR-LP1090-12-001 Accessory   60W Modular Power Supply: 90 ~ 264Vac, 277Vac to 12Vdc / 5A


UL Recognized Component
(US & Canada) UL1310, UL48 Class 2 recognized

Dimensions in inches [mm]



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PWR-LP1090-12-001
(100-277VAC,12-19VDC@2.0-5.0Amps {RE})
Click For Volume Discount Thru Distributor

PLT-1003-301 Accessory   12W Wall Socket Power Supply, 120Vac to 12Vdc / 1A

Plug Interior Polarity: Positive
Lifetime: 60,000 Hours

Can plug into the connector accessory ADPT-STP-002,
providing a blunt-cut wire end for the electrician.

Can plug into the connector accessory ADPT-STP-001, which snap connects to StripLED modules.


Convert to 12Vdc
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PLT-1003-301
(PWR SPLY,120VIN/12VOUT,1AMPNON-RoHSVC02)
Click For Volume Discount Thru Distributor

PLT-1003-303 Accessory   28.8W Wall Socket Power Supply, 100 ~ 240Vac to 12Vdc / 2.4A

Plug Interior Polarity: Positive
Lifetime: 155,000 Hours

Can plug into the connector accessory ADPT-STP-002,
providing a blunt-cut wire end for the electrician.

Can plug into the connector accessory ADPT-STP-001, which snap connects to StripLED modules.


Convert to 12Vdc
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PLT-1003-303
(PWR SPLY,120VIN/12VOUT,2.4AMPNON-RoHSVC)
Click For Volume Discount Thru Distributor

PLT-1003-304 Accessory   62.4W Wall Socket Power Supply: 100 ~ 240Vac to 12Vdc / 5.2A, Desk Top

Plug Interior Polarity: Positive
Lifetime: 200,000 Hours

With ~6.5 ft power cord

Can plug into the connector accessory ADPT-STP-002,
providing a blunt-cut wire end for the electrician.

Can plug into the connector accessory ADPT-STP-001, which snap connects to StripLED modules.


Convert to 12Vdc
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PLT-1003-304
(PWR SPLY,120VIN/12VOUT,5.2A,REGNON-RoHS)
Click For Volume Discount Thru Distributor

PLT-1003-305 Accessory   36W Wall Socket Power Supply, Regulated 120Vac to 16Vdc / 1.87A

Requires Power Adapter ADPT-STP-001
Plug Interior Polarity: Positive
Lifetime: 60,000 Hours

Can plug into the connector accessory ADPT-STP-001 to power 16vdc StripLED modules.


Power Supply, 1.87A, Regulated 120VAC/16VDC, Wall Mount
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		PLT-1003-305
(PWR SPLY,120VIN/16VOUT,1.87A NON)
Click For Volume Discount Thru Distributor

CONN-WIRE-STP301-3 Accessory   Module Interconnector

Wire: 22Gauge
Inter-connector length: 4.00in. [101.60mm]

  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		CONN-WIRE-STP301-3
( {46RE})		Click For Volume Discount Thru Distributor

ADPT-STP-001 Accessory   Power Adapter

Wire: 22Gauge
Adapter length: 4.20in. [106.68mm]

  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call
800-579-4875
To ORDER		ADPT-STP-001
(ADAPTER,COAX TO STP {38RE} )		Click For Volume Discount Thru Distributor

All specifications and pricing subject to change without notice.
Features:
  • One Year Warranty
  • Each StripLED module contains four super-bright wide-angle SpiderLEDs for maximum intensity
  • Each StripLED module includes one 3-inch double-ended connector harness for easy assembly in creating a "daisy chain" effect
  • Each StripLED module includes a pre-applied strip of 3M® double-sided foam tape for easy "Peel and Stick" assembly
  • StripLED modules are 12Volts in Red and Yellow, 16Volts in White, Green, and Blue
Applications:
  • Channel letter signs
  • Reverse channel letter signs
  • Indirect accent decor lighting
  • Architectural lighting
  • Large area back lighting
  • Under counter lighting
  • Display cases
  • Under-Cabinet lighting in kitchen
