Flexible LED Neon Rope, 120VAC
Perimeter Lighting or Edge Lighting • Signage Lighting • Landscape Lighting
Outdoor / Indoor
Ideal for use with Alternate and Renewable Energy Resources like Solar & Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, "Dark Skies" Initiative Compatible
Shopping Cart
View Cart
Check Out


(Green, Yellow, and Orange NeonLED are ordering options)

Canada/US UL-Listed
Features
Options
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  RNLD01U NeonLED Rope Light (Milky White Jacket)
  RNLD02U NeonLED Colored Jacket Rope Light
  RNLD04U-009 End Caps for RNLD01U
  RNLD04U-005 T-Shaped Connector
  RNLD04U-010 X-Shaped Connector
  RNLD04U-007 Inside Elbow Connector
  RNLD04U-006 Outside Elbow Connector
  RNLD04U-008 L-Shaped Connector
  RNLD03U-3PC-001 Power Cord, 120VAC-to-28VDC, 1.6A Converter
  RNLD06U-5CM-001 Mounting Channel
  RNLD04U-001 Shrink Tube & Connector Pins

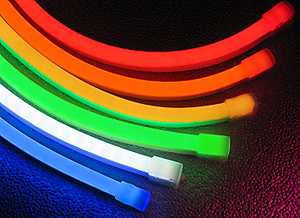

RNLD01U Series   Flexible LED Neon Rope; Translucent White Glass-Like Appearance in Off Mode
Dimensions in inches [mm]
Neon Rope; Milky-White in Off-Mode; 150ft-Length Roll1S1880M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Total
Lumens		Maximum
Candela		DescriptionModule
length
(inches)		LED Spacing
inch/mm		Max Run Length
in Feet		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color
TO ORDER, CALL US
@ 800-579-4875 		RNLD01U-0WW-120A-150FT
CALL 120VAC1.2W / foot; Total = 180W7.0 lm/ft180cd Glassy White JacketCutting Unit: 18-in.0.5" [12.7mm]159' w/1.6A convertr3000–3500Kna    Warm White
TO ORDER, CALL US
@ 800-579-4875 		RNLD01U-0CW-120A-150FT
CALL 120VAC1.2W / foot; Total = 180W7.0 lm/ft180cd Glassy White JacketCutting Unit: 18-in.0.5" [12.7mm]159' w/1.6A convertr7000–7500Kna    Cool White
TO ORDER, CALL US
@ 800-579-4875 		RNLD01U-0PW-120A-150FT
CALL 120VAC1.2W / foot; Total = 180W7.0 lm/ft120cd Glassy White JacketCutting Unit: 18-in.0.5" [12.7mm]159' w/1.6A convertr5000–6000Kna    Pure White
TO ORDER, CALL US
@ 800-579-4875 		RNLD01U-0ER-120A-150FT
(120Vac,Red LEDs,White Rope,150FT {29RE}) 		CALL 120VAC1.2W / foot; Total = 180W3.4 lm/ft130cd Glassy White JacketCutting Unit: 30-in.0.5" [12.7mm]160' w/1.6A convertrna625nm    Red
TO ORDER, CALL US
@ 800-579-4875 		RNLD01U-0PB-120A-150FT
(120Vac,Blue LEDs,White Rope,150FT {29RE}) 		CALL 120VAC1.2W / foot; Total = 180W1.3 lm/ft35cd Glassy White JacketCutting Unit: 18-in.0.5" [12.7mm]159' w/1.6A convertrna470nm    Blue

Other Colors (Orange, Yellow, Green) available for large quantity orders
RNLD02U Series   Flexible LED Neon Rope; Translucent Colored Glass-Like Appearance in Off Mode
Neon Rope; Colored Jacket; 150ft-Length Roll1S2016M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Total
Lumens		Maximum
Candela		DescriptionModule
length
(inches)		LED Spacing
inch/mm		Max Run Length
in Feet		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color
TO ORDER, CALL US
@ 800-579-4875 		RNLD02U-0PB-120A-150FT
(120Vac,Blue LEDs,Blue Rope,150FT) 		CALL 120VAC1.2W / foot; Total = 180W1.3 lm/ft--cd Glassy Blue JacketCutting Unit: 18-in.0.5" [12.7mm]159' w/1.6A convertrna470nm    Blue

Other Colors (Orange, Yellow, Green) available for large quantity orders
RNLD04U   End Caps for RNLD01 Neon Rope

PVC End Cap, UV Protected, Non-colored Translucent1S2015M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD04U-009
(End Cap RoHSVC120508) 		$0.24ea 25

RNLD04U-005 Accessory   T-Shaped Connector with 3 Male Connector Pins
T Middle Connector with 3 Pin Connectors1S2076M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD04U-005
(T Connector with 3 Pins) 		$2.00ea 10

RNLD04U-010 Accessory   X-Shaped Connector with 4 Male Connector Pins
T Middle Connector with 3 Pin Connectors1S2077M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD04U-010
(*** X Connector) 		$2.57ea 10

RNLD04U-007 Accessory   Inside Corner Elbow Connector with 2 Connector Pins
Inside L Corner Connector with 2 Pin Connectors1S2078M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD04U-007
(Inside L-connector with 2 pins) 		$1.43ea 10

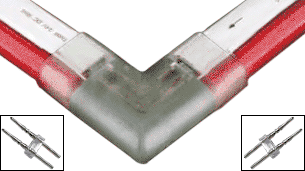

RNLD04U-006 Accessory   Outside Corner Elbow Connector with 2 Connector Pins
Outside L Corner Connector with 2 Pin Connectors1S2079M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD04U-006
(Outside L-connector with 2 pins) 		$1.43ea 10

RNLD04U-008 Accessory   L-Shaped Connector with 2 Male Connector Pins

90°-Connector, UV Protected, Non-colored Transparent1S808M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Item Weight should >0
Ask a Question 		RNLD04U-008
(L-Connector RoHSVC120508) 		$1.43ea 10

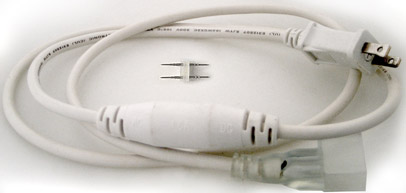

RNLD03U-3PC-001 Accessory   Power Feed, Straight 180° config., 5ft long, 120V–1.6 Amp Converter, (with pin connector)

White Power Cord, Translucent Connector, Indoor/Outdoor Use1S810M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD03U-3PC-001
(5' POWER CORD LED NEON FLEX, 2ARoHSVC12) 		$8.12ea 10

RNLD06U-5CM-001 Accessory   Aluminum Mounting Channel with 2 Screws


(recommended 4 pieces per meter to secure to surface)
Metal Guiding Clip for NeonLED1S812M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
RNLD06U-5CM-001
(5cm Metal Mtg Clip with 2 Screws RoH) 		$1.43ea 20

RNLD04U-001 Accessory   Shrink Tube with 2 Male Connector Pins
Water-resistant Straight Middle Connector with 2 Pin Connectors1S2070M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Item Weight should >0
Ask a Question 		RNLD04U-001
(Indoor Straight Middle Connector) 		$2.99ea 10

All specifications and pricing subject to change without notice.
 Features:
  • All LEDtronics Neon Ropes and Accessories Are UL Listed
  • Fast Field Installation without the Specialized Labor Required for Neon
  • Bright Neon-like Glow with Consistent Color and No Hot Spots
  • NeonLED uses low-voltage, safer 28V operation
  • Flexible: Bends by Hand to Any Angle within up to a 1.5in. [40mm] Bending Radius
  • Temperatures Below Freezing Do Not Affect Performance
  • Far Less Subject to Damage During Installation and Operation
  • No Environmentally Hazardous Substances Such as Mercury
  • Rope size width, height
  • Indoor/Outdoor Use
  • PVC Material is UV Protected
  • Low Power Consumption: 1.2 watts per foot
  • Long Life: 50,000+ Hours
  • Waterproof IP68: Except Open Ends
  • Cut Marks Every 18 inches, (30 inches for red)
  • Maximum Loading Length: 159ft with 1.6Amp Converter
  • Smallest Bend Radius: 1.5 inch [40mm]
  • Weight: 0.336 lb/ft [500g/meter] (50.4lb/150ft Reel [22.86kg/15.24meter Reel])
 Options:  For qualified applications and large quantity orders
  • Optional NeonLED Colors: Yellow, Orange, Green
  • 240VAC-to-1.6Amp in all Power Converters
  • 28VDC-to-1.6Amp in all Power Converters
  • 90° Down-Angled Elbow Power Feed, 5' Cord,
  • 90° Side-Angled Elbow Power Feed, 5' Cord,
  • Cross-Shaped X Connectors (Meeting at 90°)
  • Jumper Cables from 4in., 6in., 1ft, 2ft, 4ft, 6ft, 8ft, 12ft, and custom lengths)
  • Longer Mounting Channels
 Applications:
  • Outdoor or Indoor Use
  • Signage Letters or Store Fronts
  • Perimeter or Border Lighting
  • Safe Alternative for Glass Neon Tube Lights
  • Outlining Buildings, Counters, Walkways, Landscaping, Gardens, Decks, Cabinets, Furniture
