LED Lamps: Post-Top Acorns, Globes, Lanterns: E39 Mogul Base
Only 39 Watts Replaces Up to 150W


100Vac to 277Vac — 6000K Pure White, 3000K Warm White


Recommended Mounting Height 10ft to 18ft

Area Lighting, Security Lighting for: Streets — Walkways — Parks

Major Reduction in Energy Use
(See Eng. drawing for latest lamp appearance)
Lamp can be installed with base down or up.
Meets Buy American requirements within the ARRA
American Reinvestment and Recovery Act
Energy Savings
LED30HPS-30X2W-XIW-001
Est.
Annual
Savings
$294
1 Lamp
  • ARRA
  • FIVE YEAR WARRANTY
  • ETL Listed, US & Canada logo
  • INSTALL INSTRUCTIONS
  • ISO 9001

For qualified applications and large quantity orders

  • E27 European Screw Base Version Available, Contact Factory
  • Other white color temperatures, colors

Note: Any ballast that functioned with the replaced lamp needs to be bypassed (Operating Voltage 100-277 VAC)


When Installing Lamps In Potentially Corrosive Outdoor Environments

LEDtronics suggests that a silicone moisture-barrier sealant be used to protect the metal-threaded base of the LED bulb.

Sealant is highly recommended for all outdoor-environment LED bulb installations to prevent water and/or moisture incursion that can lead to premature degradation of the bulb base and eventual bulb failure. This is especially recommended for LED bulb installations near saltwater bodies.

Dow Corning Molykote® 111 Valve Lubricant and Sealant is a high-temperature, moisture-resistant, silicone grease. If liberally applied to the clean surface of the lamp socket and the base of the lamp itself, it will provide moisture and corrosion resistance.


Dow Corning's® material spec sheet for Molykote® 111 Valve Lube & Sealant

White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.

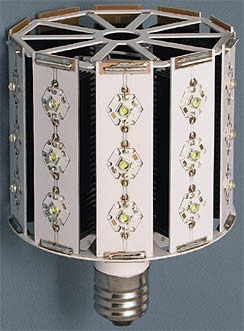

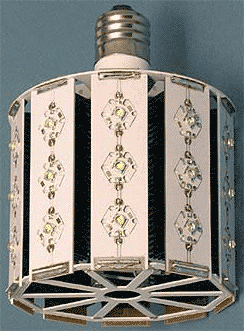

Post-Top or Pendant Lighting, E39 Mogul Screw in Lamp

  LED30XX-30
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYDescriptionInput Voltage, V
(typ)
Power (W)Current (A)Power FactorTotal
Lumens
Efficacy
lm/W
Maximum
Candela
CRIColor Temp.
(Kelvin)
LED Emitting
Color
Weight, lbs [kg] Approx.Illumination
Pattern
Viewing
Angle‡‡
Call
800-579-4875
To ORDER
LED30HPS-30X2W-XIW-001
(100-277VAC,I.White,E39 Mogul PND)
Click For Volume Discount Thru DistributorLight readings taken with no lens over lamp100-277VAC
(Tested @ 120VAC)
38.7 W0.326A0.992269 lm59310cd662800K to 3200K  Warm White2.688 lbs [1.219 kg]10-arm Radial Beam80° beam @ 90° from vert
Photometrics: PDF  IES File
Eng File:Engineering File
Brochure:Brochure
 Electrical / Optical Characteristics (Ta = 25°C)
‡‡Full Beam Width at 50% Intensity
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYDescriptionInput Voltage, V
(typ)
Power (W)Current (A)Power FactorTotal
Lumens
Efficacy
lm/W
Maximum
Candela
CRIColor Temp.
(Kelvin)
LED Emitting
Color
Weight, lbs [kg] Approx.Illumination
Pattern
Viewing
Angle‡‡
Call
800-579-4875
To ORDER
LED30MH-30X2W-XPW-001
(100-277VAC,P.White,E39 Mogul PND)
Click For Volume Discount Thru DistributorLight readings taken with no lens over lamp100-277VAC
(Tested @ 120VAC)
35.1 W0.288A0.983445 lm98.1355cd765500K to 6350K  Pure White2.5 lbs [1.13 kg]10-arm Radial Beam80° beam @ 90° from vert
Photometrics: Without Lens PDF  IES File
Eng File:Engineering File
Brochure:(brochure needs update) Brochure
 Electrical / Optical Characteristics (Ta = 25°C)
‡‡Full Beam Width at 50% Intensity

All specifications and pricing subject to change without notice.


Features

  • LEDtronics 5 Year Limited Warranty
  • Base:  E39 Mogul Edison Screw-in
  • Solid-state, high-shock/vibration resistant.
  • Life Expectancy: Based on 12 hrs/day = 11.4 years
  • Long Life: Lumen Maintenance of the White LEDs Is Greater than 70% at 50,000 Hours of Operation.
    (Rated Average Life Based on Engineering Testing and Probability Analysis)
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]

Applications

  • Suitable for Damp Location Fixtures
  • Ideal for Canopies, Pedestrian Tunnels, Stairwells, Corridors, Garages and Parking Structures
