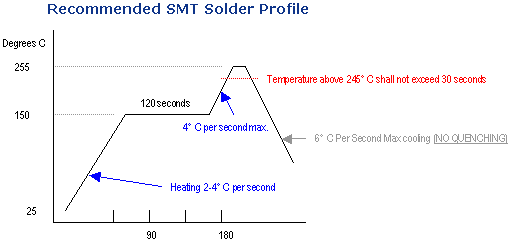

All LEDtronics, Inc.® SMT products are suitable for use in typical lead free soldering applications. Heating should not exceed 4°C per second and held at 140 to 160°C for 2 minutes. The continuation of heating shall not exceeding 4°C per second, to 260°C. Temperature above 245°C shall not to exceed 30 seconds maximum. The maximum temperature should be 255°C ±5°C. Maximum cooling is 6°C per second, no quenching allowed. ( See Recommended SMT Solder Profile below ).
Disclaimer: This RoHS compliance statement is, to the best of LEDtronics, Inc.® knowledge, accurate as to the date shown on this page. As some of the information is based upon data provided from sources outside of LEDtronics, Inc.®, we make no representation or warranty as to the accuracy of such information. LEDtronics, Inc.® continues to work toward obtaining valid and certifiable third party information, but has not necessarily conducted analytical or chemical analyses on all materials or purchased components. In no event shall LEDtronics, Inc.®’s liability exceed the purchase price paid by the customer.
The date code in is defined as the RoHS compliance date as month-date-year.
I.e. <RoHS112906> means that this product was Lab Certified, RoHS compliant as of Nov. 29, 2006
<RoHSVC112906> means that this product was Vendor Certified, RoHS compliant as of Nov. 29, 2006
Please note that product ordered and shipped after the RoHS compliance date will only be RoHS compliant if the customer has requested so.
To verify a product for RoHS Compliance, Ledtronics will need the part number, your purchase order number, date of purchase and Ledtronics sales order number, if available.
