LED Tube Lights, T8 in 4FT(48") Long, G13 BiPin,
Fluorescent Equivalent, 100 to 290VAC
Premium Intensity LEDs • Series LED48T8-288 • Pure White 5000K or Warm White 3000K
Energy-Efficient Drop-In Replacement (with line voltage bypassing ballast) for 4-Foot Fluorescent Bulbs
Pure White • Consumes Less than 18 Watts
Uses G13 Medium 2-pin Base
Shopping Cart
View Cart
Check Out
T8 Tube Light, 96" T8 Tube Light, 60" T8 Tube Light, 48" T8 Tube Light, 36" T8 Tube Light, 24"

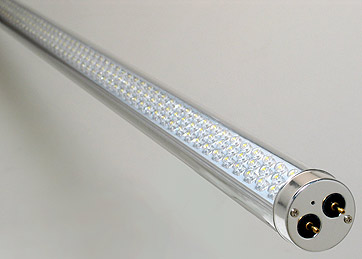

LED tube light fluorescent replacement

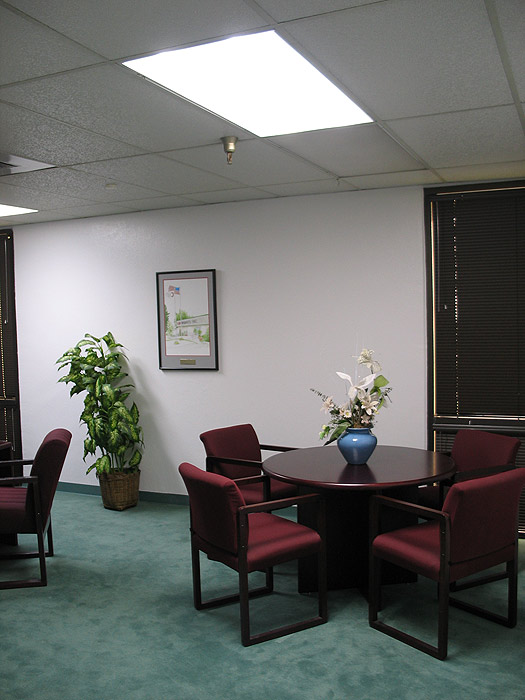

Three Year Warranty		LED illuminated office
Office illuminated with LEDtronics
LED fluorescent-replacement tube lights.
Click to enlarge
G13 bipin base
European Conformity      RoHS Compliant

Installation Instructions
Specifications
  • Part Numbers: LED48T8-288-TPW-001W, LED48T8-288-SIW-001W (see specs in table below)
  • Wide-Angle Beam Pattern
  • Line Input Voltage: 100-290VAC, North American or European Currents
  • Energy Used: Less than 19Watts
  • Color Temperatures: Warm White or Pure Daylight White
  • Harmonic Factor: • Current; 16% Max.  • Voltage; 19.1% Max.
  • Ambient Humidity: ≤95%
  • Ambient Operating Temperature: ~-31°F to ~+113°F  [~-35°C to ~+45°C]
  • Lamp Shell: Polycarbonate Lens/Aluminum Body
  • Dimensions: L47.16" × DØ1.18" [L1198mm × DØ30mm]
  • Weight: 1.30 lb  [588 g]
  • These LED tube lights are currently not dimmable
Features
Options
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Dimensions in inches [mm]
All Series under this Category:
  LED48T8-288 48", 32watt Fluorescent Replacement
LED48T8-288-TPW Series   48" Length; 110° Beam; 2-Pin Fluorescent-Replacement LED Tube Bulb
Warm White, 100VAC to 290VAC, T8 Tube 30×1200mm; G13 Bi-Pin Base1S769M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Module
length
(inches)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Total End Foot
Candles, cd		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		LED48T8-288-SIW-001W
(100~290VAC,W.White,3000K,4FT 7R) 		CALL 100-290VAC,
(Test @ 120VAC)		48-in.17.5W typ, 19.0W max0.147 A61.31072 lm377cd≥0.99663000K    Warm White114°

Pure White, 100VAC to 290VAC, T8 Tube 30×1200mm; G13 Bi-Pin Base2S769M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Module
length
(inches)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Total End Foot
Candles, cd		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
TO ORDER, CALL US
@ 800-579-4875 		LED48T8-288-TPW-001W
(100~290VAC,P.White,5000K,4FT 7R) 		CALL 100-290VAC,
(Test @ 120VAC)		48-in.16.1W typ, 19.0W max0.135 A83.31342 lm429cd≥0.987755000K    Pure White110°

All specifications and pricing subject to change without notice.
 Features:
  • Lamp Warranty: 3 Years
  • Low Power Consumption: Less than 18 Watts
  • Long Operating Life: : White LED 50,000+ Hours (5.7+ Years)
  • Solid Construction: UV-Stabilized Plastic Lens, Aluminum Body
  • Installation: Designed as a Direct Retrofit into Most Fluorescent Lamp Fixtures Using Existing Sockets. Installation requires line voltage to bypass ballast/transformer/starter directly to fluorescent sockets.
  • Even Lighting: High Intensity / No Halation
  • Safety Assurance: RoHS & CE Compliant
 Options:  For qualified applications and large quantity orders
  • Other Viewing Angles Available: 20°-Beam, 40°-Beam, 60°-Beam
  • Other Lengths Available: 1-ft, 2-ft
  • Other Colors and White Color Temperatures Available
 Applications:
  • Office Lighting
  • Recreation Vehicle, Bus, Train Interiors
  • General Backlighting and Street Sign Backlighting
  • Task Lighting, Under Cabinets/Counters
  • Display Cases
  • Coolers, Freezers
  • Interior Design Uses
  • Retail Store Displays
  • Closet Illumination
  • Cove Lighting
  • Concealed Accent lighting
  • Edge Lighting
  • Cubicle, Workbench Lighting
Benefits:
  • Solid state: High shock / vibration resistance
  • Instant, full-strength lightup – No buzzing or flickering
  • Radiation environment-friendly: No ultraviolet or infrared radiation
  • Uses LEDs with high quality and longevity
  • Close to 50% reduction in energy usage and costs
  • No glass tube to shatter, safer for food industry applications
  • No mercury environmental hazard as with fluorescent tubes
  • Better performance in freezer applications without fluorescent failure rates
  • Longevity means major cost-of-replacement labor savings for hard to reach tubes needing lifts, ladders, or scaffolds

Fluorescent Reference Data for Watts / Lumens / Candela
STYLE MFR MFR PART No. LENS TYPE Volts Watts Lumens End Candela Efficacy Beam Angle
T8, G13 bi-pin PHILIPS F32T8-ADV841-EW, 28w FROSTED 4ft FLUORESCENT 120AC 24 W 813 lm 280 cd 34.3 114°
