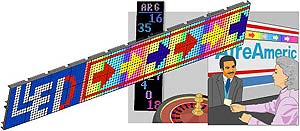

Sunlight-Visible RGB Rainbow 8x8 LED Display
5mm Dot 6.0mm Pitch • 3.1mm Dot 4.0mm Pitch Also Available
Sunlight-Visible, Greater-Intensity Full-Color Dot Matrix Design
Shopping Cart
View Cart
Check Out

Full Color
click here for 695KB pdf engineering drawing
Features
Options
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  RGB-1004 Full Color 8x8 Dot Matrix Display
RGB-1004 Series   RGB LED Tiles for Full-Color Signage and Graphics
Full Color 8x8 Dot Matrix Display1S1498M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Price should >0
Ask a Question 		RGB-1004-002
(5mm Dot,6mm Pitch,8x8,Com Cath.RGBRoHSV) 		$0.00ea 10
Ιf, mA
(typ)		Ιv, mcd
(typ)		Vf, V
(typ)/(max)		Lens
Type/Color		λp, nmLED Emitting
Color
58.51.8/2.0Clear660nm    Red
54.52.2/2.6Clear573nm    Green
52.03.8/4.5Clear428nm    Blue

All specifications and pricing subject to change without notice.
 Features:
  • One Year Warranty
  • High reliability and intensity with vivid display
  • Flat tile package and light weight
  • Full 256 color display support
  • 8 x 8, 64 dot matrix LED lamps
  • 5mm dot and 6.0mm pitch
  • Long life / 100,000+ hours
  • Common cathode
  • Stacking tile design
  • Low power consumption, high intensity
 Options:  For qualified applications and large quantity orders
  • Common anode version available
     Applications:
    • Large message panels
    • Status indicator boards
    • Animated graphic message screens
    • Decorative displays
    • Gaming machines
    • Vending machines
