  Skip Navigation LinksHome > Product Category > Automotive LED Bulbs > Motorcycle / Early Car Taillight (Dual Function)

LED Light Bulbs, Automotive 15mm Index DC Bayonet Base

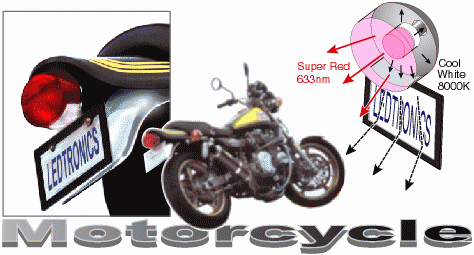

Brake / Taillight / License Plate Light Combination For Certain Motorcycles
Replacement for: Incandescent 1157, 2057, & European P21/5W bulbs
For aftermarket use. May not comply with SAE or U.S. DOT standards.
Shopping Cart
View Cart
Check Out
AUT1157 AUT3157
Note: LED brake/tail lamps may not work with some older thermal flasher units. An LED brake/tail lamp will require an electronic flasher/blinker unit which is commonly available at your local auto parts store. "Electronic Flasher? What's that?" (on GM-Trucks.com)
Features
Options
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Patent Number US 6,598,996,B
All Series under this Category:
  AUT1157M Brake Light / Tail Light / License Plate Light Combination
  AUT-RES Load Resistor
AUT1157M Series

Replacement for: Incandescent 1157, 2057, & European P21/5W bulbs
28Vdc, High-Efficiency BiColor Orange/Pure Green B3126 (6-LED)1S1400M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
AUT1157M-0RW-014V
(BRAKE/LICENSE,14V, E4K/W,INDEXRoHSVC061) 		$39.50ea 2
Light ModeInput Voltage, V
(typ)		Ιf, mA
(typ)		Total End Foot
Candles, cd		Number of
LEDs		λp, nmColor Temp.
(Kelvin)		LED Emitting
Color
License12/14Vdc144366 8000K    Cool White
Tail12/14Vdc144618633nm     Super Red
Braking12/14Vdc1447518633nm     Super Red

AUT-RES Accessory   Load Resistor (Sold Separately)
Inline Wiring Schematic

Load Resistor Statement: If installing LED bulbs in your car or motorcycle causes your blinkers to blink fast or causes other electrical problems you may need to install a load resistor to correct these problems. Since LED bulbs draw much less current then standard incandescent bulbs your electrical computer system may think that your bulbs are not working. The AUT-RES-6-50 should resolve these problems. This is a 6 Ohms 50 Watt resistor that needs to be installed in-line with your tail/blinker lights, one Load resistor (AUT-RES-6-50) is required for each tail/blinker light.
Load Resistor1S1401M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
AUT-RES-6-50W
(LOAD EQUALIZER,LED,TURN SIGNAL RoHSVC08) 		$7.45ea 1

Caution: This Load Resistor (AUT-RES-6-50) gets extremely hot and needs to be installed correctly. The flat surface of the AUT-RES-6-50 needs to make a good secure contact on a clean flat metal surface on your car or motorcycle. This will act as a heat sink which should keep the Load Resistor (AUT-RES-6-50) cooler. Keep this Load Resistor (AUT-RES-6-50) away from oil, skin, plastic, wires , combustible gases and flammable materials. LEDtronics is not responsible for damage caused to persons or property with installation of the Load Resistor (AUT-RES-6-50).
All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Easily replaces standard 1157& 2057 bulb types
  • LED bulbs have greater durabilitythan incandescent bulbs
  • LED bulbs turn on to full intensity in nanoseconds, providing following drivers 19 extra feet of stopping distance at 65mph
  • Low power (Wattage) draw, puts less load on the motorcycle electrical system, like alternator & battery.
  • LEDs last for 100,000 hours
  • Little-or-no heat, always cool to the touch
 Options:  For qualified applications and large quantity orders
  • Other Voltages Available, 24V, 28V, 36V, 48V
  • Other Bases Available
  • Other Colors Available
 Applications:
  • Stop, taillight, and license plate lights
  • Motorcycles
  • For best results, LED lamp output color should be same as Lens/ Filter color above the lamp.
  • LED Lamps shown are for most standard applications.
  • Some applications may require custom or modified configuration of the LED Lamp.
  • LED Lamps shown are for direct DC or AC voltage supply. External resistor, relays or special circuits may require special LED Lamps.
