Solar-Powered LED 12-Volt Lighting Systems
8 to 16 Hour Continuous Illumination Per Full Charge
Long-Endurance, High-Intensity Illumination for Remote Environments
Ideal for Use with Alternate and Renewable Energy Resources like Solar & Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, "Dark Skies" Initiative Compatible
Shopping Cart
View Cart
Check Out
Product and picture shown on this webpage may not represent current product offering
Charging Conditions: Given charging time of a fixed solar panel optimally placed to receive maximum exposure of a sunny 12-hour day, at moderate latitudes
Battery Charging Time (under the stated conditions): The 10-Watt solar panel will fully charge the uncharged battery in twelve hours. Lamps will illuminate during the daytime while the battery gets charged or during nighttime when there is no charging. But keeping the lamps off during the daytime will let the battery get fully charged for the coming night.
A fully-charged battery with three 24-LED-cluster lamps (72 LEDs greater intensity versus SLR002's 27 LEDs) will illuminate for approximately 8 hours.
Features
Options
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  SLR001 12-Volt Lighting System for 3 Bulbs
SLR001 Series   Remote Lighting Kit
SEE CHART BELOW
10-Watt (3 LED Bulbs) Solar-Powered Lighting System1S1399M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYLamp TypeDirectional End Lumens
@ 40° Beam		Total End Foot
Candles, cd		Full Viewing
Angle (2θ½)
SLR001-324-XPW
(12VDC,SLRKIT,WHITE,10W PNL,3BULB) 		$198.50ea 1 Three 24-Led Lamps75 Lumens144cd40°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Two Year Warranty for Solar-Powered Lighting Systems
  • Three 12/14VDC lamps used together or singly, with on/off pull-chain
  • Lamps are shatterproof, shock & vibration resistant
  • Battery; 12Volt, 3 amp hour — 20 HR
  • 16AWG wiring, terminal block, voltage regulator with low-voltage disconnect
Solar Panel Specifications Optimal
Max. power 10Watts
Current (short ckt.) 770mA
Current (rated) 640mA
Max System Open 25V
Ckt Voltage
Open Ckt Voltage 22.9V
Rated Voltage 15.6V
Note: Wiring, terminal block and bulb sockets are not rated for
outdoor use. These devices are subject to corrosion if left
outdoors.
 Options:  For qualified applications and large quantity orders
  • Larger sized solar panels
  • Larger sized batteries
  • Optional 12Volt lamp styles and color of light

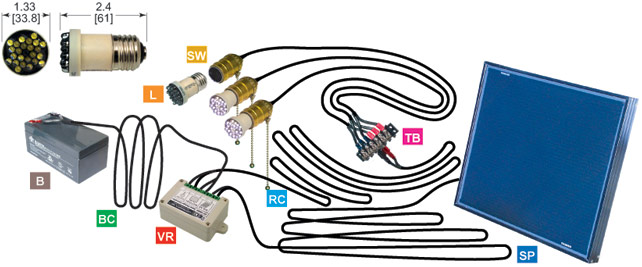

 L
Three White 24-LED Lamps   (SLR124-06-N3)
(12/14VDC)
Weight (each): 1.1oz
[0.031kg]; 3.3oz total		  SW
Three Socket Fixtures and 16AWG Wiring
Cable from Lamp Sockets
to Terminal Block
L: 12+ ft. [3.8+ m]  Weight: 1lb,9.2oz [0.711kg]		  TB
Terminal Block
L: 2.93 [74.4],
W: 0.69 [17.5]
Weight: 0.9oz [0.025kg]		  SP  Solar Panel (Photovoltaic Module)
10 Watts
Current 0.77 Amps (short ckt.),  0.64 Amps (rated).
Max. system open ckt. voltage: 25V
(open ckt.) 22.9V (rated) 15.6V
L: 15.25 [387.4],   W: 1.31 [33.3]  H: 12.88 [327]
Cable Length: 57in. [1447]   Weight: 5lb 6.4oz [2.449kg]
 B  Battery
Sealed, lead-acid, maintenance-free
rechargeable battery
12 Volt, 3 amp hour — 20 HR
L:5.30 [134.6], W:1.64 [41.5] H:2.35 [59.7]
Weight: 2lb 14.7oz [1.324kg]		  BC  Battery to
Regulator Cable
Length:  11ft.+ [3m+]
Weight: 8.3oz [0.232kg]		  VR  Voltage Regulator
(with low-voltage disconnect)
L: 4.32 [110],  W: 2.32 [59]
H: 1.30 [33]
Weight: 3.9oz [110g]		  RC  Regulator to Terminal Cable
L: 12ft.+ [3.6m+]
Weight: 8.3oz [0.232kg]
