LED Light Bulb, T3¼ (9mm) 'PR' Flange Base, 3-Watts
Turn Your Ordinary 2-cell, 3-cell, and 6-cell PR-Style Flashlights into Long-Life, Bright LED Flashlights in Seconds
F321-3W-0CW-002 LED PR Bulb lights for 92 hours — 6 times longer (72 hours) than standard incandescent flashlight bulbs
Shopping Cart
View Cart
Check Out
PR Flange Base Flashlight 3-LED PR Flange Base Flashlight 3W 5mm 3-LED Cluster

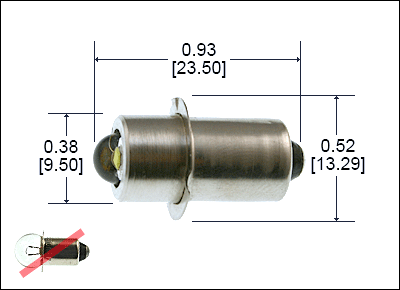

Dimensions in inches [mm]
Features
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  F321-3W Flex-Voltage 3-Watt P13.5s Min. Flange Flashlight Bulb
F321-3W Series   3-Watt LED Flashlight Bulb with P13.5s Single-Contact Miniature Flange Base
Flexible Voltage1S2812M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Current, AEnergy Used,
W		Lamp TypeColor Temp.
(Kelvin)		LED Emitting
Color
F321-3W-0CW-001
((0.8V-4.5V) 7RoHSVC022309 ) 		$19.10ea 2 1.0 to 3.3Vdc0.600 A3 WLuxeon LED8000K    Cool White
F321-3W-0CW-002
((3.6V-9V)) 		$19.10ea 2 3.6 to 9Vdc0.600 A3 WLuxeon LED8000K    Cool White

Other Colors and Voltages Available for large volume requirements
Volume Price Available

All specifications and pricing subject to change without notice.
 Features:
  • One Year Warranty
  • 002 PR LED bulb puts out over 1,300 foot-candles of light. 001 PR LED bulb puts out 900 foot-candles of focus-beamed flashlight.
  • LED 002 bulb will light for 92 hours on 3 fully charged D Batteries—72 hours more light than incandescent bulbs. LED 001 bulb will light for 68 hours on 2 fully charged D Batteries.
  • LED bulbs last 6 times longer on a set of batteries than incandescent bulbs.
  • White LED bulbs last up to 5 years, that's over 30 times longer than incandescent bulbs
  • You save 12 batteries by using a LED bulb per usage of battery life
  • LEDs are solid-state, high shock / vibration resistant, virtually unbreakable
  • Easily replaces standard PR bulbs, no extra parts needed
  • 8000 Kelvin pure white light
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Applications:
  • 2-cell flashlights and torchlights that use PR replacement bulb
  • 3-cell flashlights and Torchlights that use PR replacement bulb
  • Taplight® and similar style lighting products that use PR base bulbs
  • Works in focused-beam or standard PR-base flashlights

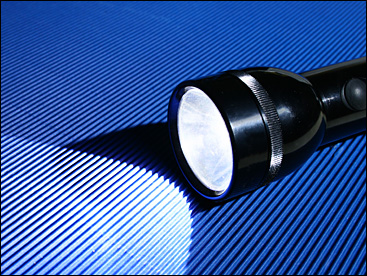

Application Samples:

Light Output Charts:
LEDtronics 3 Watt PR LED Bulb in a 3 D-Cell Focus Beam Flashlight
A Cool White 3-Watt PR LED Bulb lasted for 3 days and 8 hours at a diminishing light output rate.
Standard Incandescent PR flashlight bulb lasted 20 hours in the same flashlight unit.
LEDtronics 3-Watt PR LED Bulb in a 2 D-Cell Focus-Beam Flashlight
A Cool White 3W PR LED Bulb lasted for 2 days and 19 Hours at a diminishing light output rate.
Standard Incandescent PR flashlight bulb lasted 20 hours in the same flashlight unit.
