  Home > LED Neon Rope & Strip Lighting > LED Strip / Path Lighting, Path Light Strings > LED Strip / Path Lighting, Path Light Strings





LED Light Strip, Flexible, Multi-Purpose PathLED™
5mm LEDs, 22° Angle Illumination, LED Spacings 1/2" to 12"
Direct Incandescent Replacement — Up to 90% Energy Savings
Ideal for use with Alternate or Renewable Energy Resources like Solar & Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, "Dark Skies" Initiative Friendly

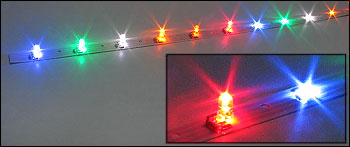

PLT500 5mm L200 LED White-colored Base shown above.
Custom Option: PLT510 (not shown) 5mm LDF200 LED Black-colored Base.
*TRIM MARK: When trimming to size,
½" and 1" PathLED™ must be cut at every third LED segment as shown.

White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.

PLT500 Series   PathLED™ with 5mm Dome LEDs (22° Beam Width) on White Base

Sunlight-Visible Incandescent White (3000K) with 1/2", 1", 3", 6" LED Spacing
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYLED Spacing
inch/mm		Input Voltage, V
(typ)		Ιv, mcd
(typ)		Amps Per FootWatts
per Foot		Max Run Length
in Feet		Max Modules
per 1 Amp		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color		Viewing
Angle‡‡
Call For Factory
Assistance
800-579-4875		PLT500-XIW-0503
(12VDC,PATHLED,WHITE,5MM LED,0.)		Price & Volume
Discount Thru
Your Distributor		1/2"12Vdc39500.121.442533000K  XWarm White20°
Sunlight-Visible Super White (7000K) with 1/2", 1", 3", 6" LED Spacing
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYLED Spacing
inch/mm		Input Voltage, V
(typ)		Ιv, mcd
(typ)		Amps Per FootWatts
per Foot		Max Run Length
in Feet		Max Modules
per 1 Amp		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color		Viewing
Angle‡‡
Call For Factory
Assistance
800-579-4875		PLT500-0CW-0503
(@@@12VDC,PATHLED,WHITE,5MM LED,0.)		Price & Volume
Discount Thru
Your Distributor		1/2"12Vdc64500.121.442537000K  Cool White20°
Sunlight-Visible Super Red (630nm) with 1/2", 1", 3", 6" LED Spacing
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYLED Spacing
inch/mm		Input Voltage, V
(typ)		Ιv, mcd
(typ)		Amps Per FootWatts
per Foot		Max Run Length
in Feet		Max Modules
per 1 Amp		Color Temp.
(Kelvin)		λp, nmLED Emitting
Color		Viewing
Angle‡‡
Call For Factory
Assistance
800-579-4875		PLT500-0ER-0503
(12VDC)		Price & Volume
Discount Thru
Your Distributor		1/2" (12.7)12Vdc52500.161.92183630nm  Super Red22°
Call For Factory
Assistance
800-579-4875		PLT500-0ER-6003
(12VDC)		Price & Volume
Discount Thru
Your Distributor		6" (152.4)12Vdc52500.040.48753630nm  Super Red22°
‡‡Full Beam Width at 50% Intensity

Other Voltages available for large quantity orders
Other Colors & LED to LED Spacing available for large orders

PWR-LP1020-12 Accessory   20W Modular Power Supply: 90 ~ 264Vac Range to 12VDC/1.66A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call For Factory
Assistance
800-579-4875		PWR-LP1020-12
(90-264VAC,12VDC@1660mA,20Watts {38RE})
Price & Volume
Discount Thru
Your Distributor

PWR-LP1025-12 Accessory   25W Modular Power Supply: 100 ~ 240Vac, 277Vac to 12Vdc / 2.08A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call For Factory
Assistance
800-579-4875		PWR-LP1025-12
(100-277VAC,12VDC@2800mA, {RE})
Price & Volume
Discount Thru
Your Distributor

PWR-12VCV-3.33A-PF Accessory   40W Modular Power Supply: 90 ~ 264Vac to 12Vdc / 3.33A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)


Convert to 12Vdc
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call For Factory
Assistance
800-579-4875		PWR-12VCV-3.33A-PF
(12VDC-3.33A,40W,IN 90-264VAC,PF0.9{29RE)
Price & Volume
Discount Thru
Your Distributor

PWR-LP1060-12 Accessory   60W Modular Power Supply: 90 ~ 264VAC to 12Vdc / 5A
Dimensions in inches [mm]

UL Recognized Component
(US & Canada)



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call For Factory
Assistance
800-579-4875		PWR-LP1060-12
(90-264VAC,12VDC@5Amps {15RE})
Price & Volume
Discount Thru
Your Distributor

PWR-LP1090-12-001 Accessory   60W Modular Power Supply: 90 ~ 264Vac Range, 277Vac to 12Vdc / 5.0A


UL Recognized Component
(US & Canada) UL1310, UL48 Class 2 recognized

Dimensions in inches [mm]



AC to 12V DC
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call For Factory
Assistance
800-579-4875		PWR-LP1090-12-001
(100-277VAC,12-19VDC@2.0-5.0Amps {RE})
Price & Volume
Discount Thru
Your Distributor

PLT-1003-301 Accessory   12W Wall Socket Power Supply, 120Vac to 12Vdc / 1A

Plug Interior Polarity: Positive
Lifetime: 60,000 Hours

Can plug into the connector accessory ADPT-STP-002,
providing a blunt-cut wire end for the electrician.

Can plug into the connector accessory ADPT-STP-001, which snap connects to StripLED modules.


Convert to 12Vdc
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUY
Call For Factory
Assistance
800-579-4875		PLT-1003-301
(PWR SPLY,120VIN/12VOUT,1AMPNON-RoHSVC02)
Price & Volume
Discount Thru
Your Distributor

PLT-1003-003 Accessory   Male Pin Contact (for use without housing)
For large quantity orders and qualified applications this Series item can be manufactured to your specifications. Please email (click here) or call LEDtronics, (800) 579-4875.


PLT-1003-004 Accessory   Solder Tab
For large quantity orders and qualified applications this Series item can be manufactured to your specifications. Please email (click here) or call LEDtronics, (800) 579-4875.


All specifications and pricing subject to change without notice.
Features:
  • Three Year Warranty
  • Continuous length Flexible LED Light Strips Cut to Any Length
  • Runs on 12-Volt Systems like Solar Cell Charged Batteries
  • Choice of SMT, 5mm or 3mm LEDs
  • Solid-State, High Shock / Vibration Resistant
  • Major Reduction in Power Costs
  • Continuous or Spot Illumination
  • Optional Black Cable
  • No RF Interference
  • Darkroom / Safelight Level Intensity Available
  • Maintenance Free, Easy Installation
  • Long Life 100,000+ hrs(10+ Years). White LEDs, 50,000+ hrs
  • Low Power Consumption, High Intensity
Applications:
  • Architectural Decorative Lighting Archway, Canopy & Bridge Edge Lighting
  • Amusement Park, Theater & Aircraft Cabin Mood Lighting
  • Emergency Hallway Lighting
  • Auditorium Walkway Lighting
  • Stairway Accent Lighting
  • Concealed Lighting
  • Backlighting for Signage Letters
