  Skip Navigation LinksHome > Product Category > Architectural LED Lighting > PAR30 Spot, Non-dimmable, 45°-beam (E26/E27)

LED Light Bulbs, PAR30-Style, Consumes only 15W Max

80 to 260VAC Voltage Range • E26, E27 Screw-in Base • Floodlight • Security Light • Emergency Light • Replaces Up to 66W Halogen
45° Medium Beam, Non-Dimmable (On/Off Only} • Direct Incandescent Replacement — Up to 80% Energy Savings
Ideal for use with Alternate or Renewable Energy Resources like Solar and Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, Enhances Night Vision
Shopping Cart
View Cart
Check Out
PAR30-15W PAR30-15W, Dimmable PAR30-15W Narrow




Warm White bulb is shown
Lot lighting in Denmark
Click to application webpage
UL Listed Available in 120VAC
Features
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Note: This model is for use with standard ON/OFF switches only,
not with a dimmer. Use with any type of dimmer,
relay or other current/voltage control circuit device will VOID WARRANTY.
  3 Year Warranty

VIDEO:
Windows Media Player: Broadband
All Series under this Category:

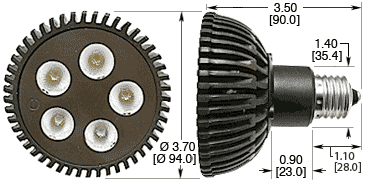

  PAR30-15W 3¾" dia., PAR30 Style Lamp
PAR30-15W Series

Declaration of Compliance Reference Number: WT07071396-D-E
Declaration of Compliance with the European Electromagnetic Compatibility Directive 2004/108/EC. TEST STANDARDS: EN 55015:2000+A2:2002, EN 61547:1995+A1:2000; EN 61000-3-2:2000+A2:2005; EN 61000-3-3:1995+A2:2005*

* Notes to CE compliance:
EN 55015: Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment. EN 61547: Equipment for general lighting purposes – EMC immunity requirements. EN 61000-3-2: Electromagnetic Compatibility (EMC) Part 3-2: Limits for harmonic current emissions (Equipment input current up to and including 16A per phase). EN 61000-3-3: Electromagnetic Compatibility (EMC) Part 3-3: Limitation of voltage supply systems for equipment with rated current ≤ 16A. The referred test reports show that the product complies with standards recognized as giving presumption of compliance with the essential requirements in the above listed EU Directives. Other relevant directives have to be observed.

Sunlight-Visible 3000K Warm White PAR30-15W1S2905M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYInput Voltage, V
(typ)
Energy Used,
W
Current, AEfficacy
lm/W
Total
Lumens
Total End Foot
Candles, cd
Power FactorCRIColor Temp.
(Kelvin)
LED Emitting
Color
Full Viewing
Angle (2θ½)
PAR30-15W-XIW-001M
(80~260Vac,W.White,3000K 7RoHSVC031909)
Certified tests [ITL, LSI]
Certified ies file [LSI]
$79.20ea 1 80-260VAC13.9 typ, 15 max0.194 A37.7524.7 lm824.8cd0.595863200K    Warm White45° ±3°

Sunlight-Visible 5000K Pure White PAR30-15W2S2905M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)
PRICEMIN BUYInput Voltage, V
(typ)
Energy Used,
W
Current, AEfficacy
lm/W
Total
Lumens
Total End Foot
Candles, cd
Power FactorCRIColor Temp.
(Kelvin)
LED Emitting
Color
Full Viewing
Angle (2θ½)
PAR30-15W-XPW-001M
(80~260Vac,P.White,6000K7RoHSVC031909)
$79.20ea 1 80-260VAC12.7 typ, 15 max0.177 A43.6553.9 lm1046cd0.594756000K    Pure White40°–45°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Easy Installation Using Existing E26 Edison or E27 European Base Sockets
  • White LED: Up to 50,000+ hrs (5.7yrs+)
  • Solid-State, Fast Turn On, No Power Surge
  • High Shock / Vibration Resistant
  • Major Power Savings up to 80%
  • CE Compliant
  • Equivalent Brightness of Up to a 66W Halogen Bulb
  • Indoor Use Only
  • 80-260VAC and Is Designed as a Direct Retrofit into Most PAR-30 Fixtures
  • High CRI 80+
  • No Harmful UV or IR
  • RoHS Compliant
  • Ambient Operating Temperature Range: ~-22°F to ~+113°F [~-30°C to ~+45°C]
 Applications:
  • Track, Lighting, Accent Lighting
  • General, Architectural and Landscape Lighting
  • Display Case fixtures and Cabinet Lighting
  • Signage and Back Lighting
  • Aerospace Lighting Systems
  • Industrial OEM Equipment Lighting
  • Bio-Medical and Medical Applications
Incandescent Reference Data for Watts / Lumens / Candela
STYLE MFR MFR PART No. LENS TYPE Volts Watts Lumens End Candela Efficacy Beam Angle
PAR30 SYLVANIA PAR30-120V-66W CLEAR HALOGEN 120VAC 67 W 754.3 lm 1373.0 cd 11.3 37.7°
