  Skip Navigation LinksHome > Product Category > Architectural LED Lighting > High-Power PAR20-Style

LED Bulbs, PAR20, E26 Base, Hi-Power, Spotlight, 6Watts, 85-265VAC
Only 6Watts • Replaces 20 to 30Watts Halogen • Series PAR20-6W
20°, 40° Beam, Non-Dimmable (On/Off Only) • Direct Incandescent Replacement with Up to 80% Energy Savings
Ideal for Use with Alternate or Renewable Energy Resources – Solar & Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, "Dark Skies" Initiative Compatible
Shopping Cart
View Cart
Check Out
PAR20-66 PAR20-66, Dimmable PAR20-6W PAR20-9W PAR20-9W, Dimmable

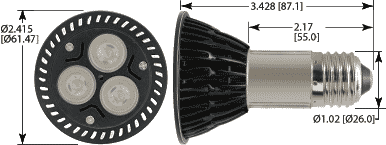

Dimensions in inches [mm]
Features
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Note: This model is for use with standard ON/OFF switches only,
not with a dimmer. Use with any type of dimmer, relay or other
current/voltage control circuit device will VOID WARRANTY.		    3 Year Warranty
All Series under this Category:
  PAR20-6W PAR20-Style High-Power, 6Watt
PAR20-6W Series   High-Power PAR20-Style E26/E27-Based Light Bulb

Declaration of Compliance Reference Number: NO.: E0808003E
Declaration of Compliance with the European Electromagnetic Compatibility Directive 2004/108/EC. TEST STANDARDS: EN55015: 2006, EN61000-3-2: 2006, EN61000-3-3: 1995+ A1:2001+A2:2005, EN61547: 1995+A1:2000
Warm White, 2700-3200K Color Temp; 85VAC to 265VAC; 20° Standard Beam or 40° Medium Beam1S828M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Total End Foot
Candles, cd		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
PAR20-6W-XIW-003S
(85~265Vac,W.White,3000K {RE}) 		$39.22ea 1 85-265VAC
Tested @ 120VAC		5.2 typ, 6.0 max0.09138.1198.0 lm1407cd0.476863200K    Warm White15°–20°
PAR20-6W-XIW-003M
(85~265Vac,W.White,3000K {RE} ) 		$39.22ea 1 85-265VAC
Tested @ 120VAC		5.8 typ, 6.0 max0.09932.8190.0 lm430cd0.488863200K    Warm White35°–40°

Pure White, 5500-6500K Color Temp; 85VAC to 265VAC; 20° Standard Beam or 40° Medium Beam2S828M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Total End Foot
Candles, cd		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
PAR20-6W-XPW-003S
(85~265Vac,White,6000K {RE}) 		$39.22ea 1 85-265VAC
Tested @ 120VAC		5.3 typ, 6.0 max0.09346.8248.0 lm1717cd0.474765500K~6350K    Pure White15°–20°
PAR20-6W-XPW-003M
(85~265Vac,White,6000K {RE}) 		$39.22ea 1 85-265VAC
Tested @ 120VAC		6.0 typ, 6.0 max0.10148.6275.6 lm581cd0.486765500K~6350K    Pure White35°–40°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Easy Installation: Using Existing 26mm Edison Base Sockets for 120V (north America)
    or E27 Base Sockets for 230V (Europe)
  • Choice of Beam Angle: Narrow or Medium Beam Width (2θ½)
  • White LED Operating Life: Up to 50,000+ hrs (5.7+ years)
  • Input Voltage: 100-260VAC
  • Designed as a Direct Retrofit into Most PAR20 Fixtures
  • Safety Assurance: RoHS & CE Compliant
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
  • Ambient Humidity: 90%
  • Solid Construction: UV-Stabilized PMMA Plastic
 Applications:
  • Accent Lighting
  • Spotlight/Security Light/Emergency Light
  • General/Architectural and Landscape Lighting
  • Display Case fixtures and Cabinet Lighting
  • Signage and Back Lighting
  • Aerospace Lighting Systems
  • Industrial OEM Equipment Lighting
  • Bio-Medical and Medical Applications
More Specifications:
  • Base:  E26 or E27 Screw-in
  • Dimensions:  Dia: 2.42” (61.5mm) / L: 3.21” (81.5mm)
  • Weight:  0.243 lbs (110g)
Benefits:
  • Major Power Savings
  • Constant and Even Light Output, Non-Halation
  • Easy Installation Using Existing PAR16 Fixtures
  • High Shock / Vibration Resistant, Both Electrical and Mechanical
  • Solid-State Design
  • No Ultraviolet or Infrared Emission
  • Reduces Light Pollution, “Dark Skies” Initiative Compatible
Incandescent Reference Data for Watts / Lumens / Candela
STYLE MFR MFR PART No. LENS TYPE Volts Watts Lumens End Candela Efficacy Beam Angle
PAR20 SYLVANIA PAR20-120V-44W CLEAR HALOGEN 120AC 43 W 371 lm 965 cd 8.62 29.1°
PAR20 GE 50PAR20H/FL25 CLEAR HALOGEN 120AC 50 W 570 lm 1290 cd 11.4 25°
