Energy Savings
MR16-6W-XxW-002x
Est.
Annual
Savings		$99
1 Lamp
Est.
Lifetime
Savings		$1,130
1 Lamp




LED Light Bulb, MR16 Style GX5.3 BiPin, 12Vac/dc
Only 5 Watts Replaces 20 Watt Halogen
Color Temp 2700K, 3000K, 6000K — Spotlight or Floodlight Beams
Ideal for use with Alternate / Renewable Energy Resources: Solar & Wind Power
Major Energy Reduction, Reduces Light Pollution, "Dark Skies" Initiative Compatible

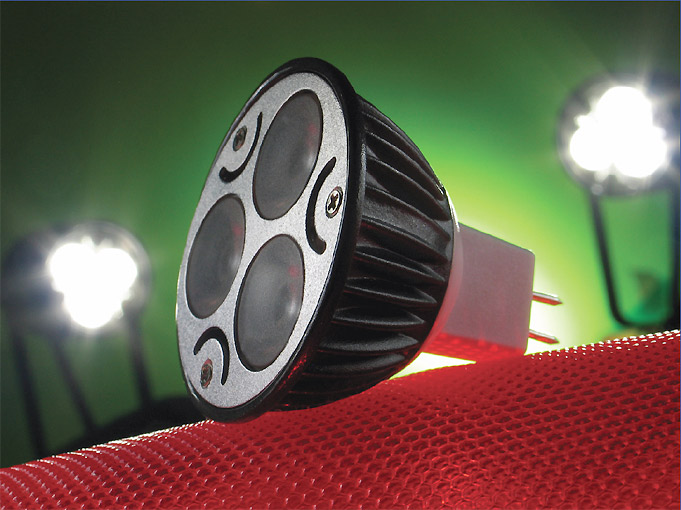

Pure White (Click to enlarge)

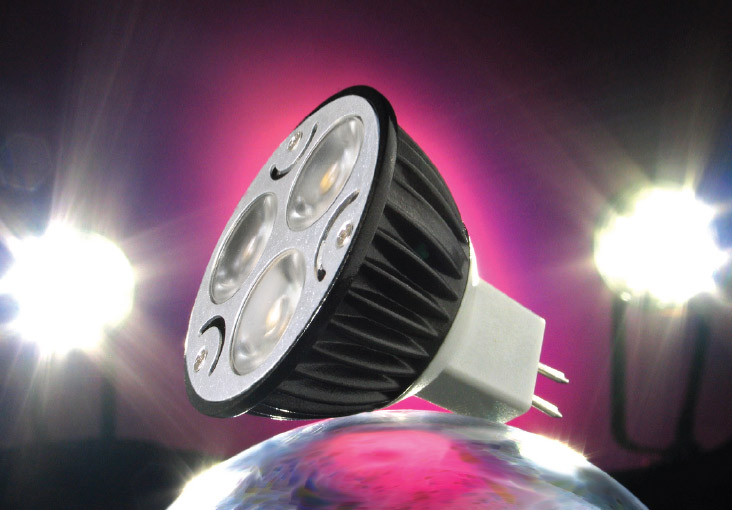

Warm White (Click to enlarge)
This lamp is intended for use in open luminaires (fixtures) ONLY.

Dimensions in inches [mm]
CAUTION: Recommended for use with 50-60Hz AC magnetic transformers or regulated DC power supplies/drivers only. Not recommended for use with high-frequency electronic AC transformers, as this usage will either create non-functional lighting, or if functionality occurs initially then internal MR16 LED bulb damage may result in premature product failures. Use of high-frequency transformers will void the warranty.
Note: These models are for use with standard ON/OFF switches only, not with a dimmer. Use with any type of dimmer, relay or other current/voltage control circuit device will void warranty.

White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.

MR16-6W Series   High Power 3-LED MR16 Built for Clean or Noisy Current, 12VAC/DC

Warm White
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Power (W)Current (A)Efficacy
lm/W		Total
Lumens		Maximum
Candela		CRIOperating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Viewing
Angle‡‡
MR16-6W-XIW-002N
(12VAC/DC,White,3000K Z1 {38RE})
Clearance Sale Item
$9.47ea
(Clearance Terms & Conditions)		4 12V AC/DC,
(Test @ 12VAC)		2.9 typ, 5.0 max0.335 A47.1137 lm1800 cd85~-30°C to ~+50°C2800K to 3250K  Warm White10°–15°
MR16-6W-XIW-002S
(12VAC/DC,White,3000K Z1 {38RE})
Clearance Sale Item
$9.47ea
(Clearance Terms & Conditions)		4 12V AC/DC,
(Test @ 12VAC)		4.3 typ, 5.0 max0.525 A40.2173 lm1222 cd85~-30°C to ~+50°C2800K to 3250K  Warm White15°~25°
Call 800-579-4875 To ORDERClick For Volume Discount Thru Distributor
Pure White
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Power (W)Current (A)Efficacy
lm/W		Total
Lumens		Maximum
Candela		CRIOperating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Viewing
Angle‡‡
MR16-6W-XPW-002S
(12VAC/DC,White,6000K Z1 {38RE})
Clearance Sale Item
$9.73ea
(Clearance Terms & Conditions)		4 12V AC/DC,
(Test @ 12VAC)		4.2 typ, 5.0 max0.445 A65272 lm1510 cd76~-30°C to ~+50°C6000K to 6500K  Pure White20°~25°
Call 800-579-4875 To ORDERClick For Volume Discount Thru Distributor
‡‡Full Beam Width at 50% Intensity

Other Colors available for large quantity orders

All specifications and pricing subject to change without notice.
Features:
  • Direct Drop-In Replacement in MR16 Fixtures Using Low-Frequency 50Hz or 60Hz Transformers
  • Designed for use with 12VDC or AC Low-Frequency 50Hz or 60Hz Transformers.
  • Major Power Savings
  • Constant Light Output
  • Solid-State, Fast Turn On, No Power Surge
  • Replaces MR16 halogen bulbs up to 20 watts (and up to 50W in certain applications)
  • White LED Operating Life: Up to 50,000+ hrs
  • Long Life: Lumen Maintenance of the White LEDs Is Greater than 70% at 50,000 Hours of Operation.
    (Rated Average Life Based on Engineering Testing and Probability Analysis)
  • No Ultraviolet or Infrared Emission
  • High Shock / Vibration Resistant, Both Electrical and Mechanical
  • Easy Installation Using Existing MR16 Fixture
  • Stays cooler than other 3 Watt MR16 bulbs
  • UV Stabilized Plastic Lens
  • Magnesium alloy lamp shell much lighter and harder than aluminium
  • Magnesium alloy has higher heat dispersion, stays cooler than other 6W MR16 bulbs
  • RoHS compliant
  • High Color Rendering Index of 75 for Warm White, 80 for Cool White
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
Applications:
  • Track lighting / Spot lighting
  • Display / Cabinet / Kiosk lighting
  • Architectural lighting
  • Art Gallery and Museum
Specifications:
  • Ambient Humidity:  90%
  • Environmentally Friendly:  RoHS Compliant
  • Lamp Shell:  Magnesium Alloy, Black
  • Weight:  1.16 oz / 33g
Halogen, and Compact Fluorescent Bulb Comparison
Make Base Volts Wattage,
stated		 Wattage,
measured
 Current
(Amps)		 Avg Life Lumens Efficacy
lm/W		 Spherical Candela Color
Temp
MR16 Halogen with no lens GU5.3
Bipin		 12V 50W 47.1 W 4.05A 3000H 690 lm 14.7 lm/W 54.9 Warm White
MR16 Halogen with no lens GU5.3
Bipin		 12V 35W 32..2 W 2.79 A 5000H 498 lm 15.5 lm/W 39.7 Warm White
MR16 Halogen, lens cover GU5.3
Bipin		 12V 20W 21.1 W 1.7 A 3000H 294 lm 13.9 lm/W 23.4 Warm White
MR16 Compact Fluorescent
(contains mercury)
 GU5.3
Bipin		 12V 5W
(50W halogen replacement)		 3.6 W 0.378 A

10000H

 16 lm 4.3 lm/W 1.22 Warm White
