LED Light Bulbs, PAR30, E26 Base, Only 15Watts, Dimmable
120VAC Voltage • E26 Screw-in Base • Floodlight • Security Light • With External Dimmer, Adjust the Light Intensity to Suit Your Setting • Replaces Up to 66W Halogen
45° Medium Beam, Dimmable (Using External Dimmer) • Direct Incandescent Replacement — Up to 80% Energy Savings
Ideal for use with Alternate or Renewable Energy Resources like Solar and Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, Enhances Night Vision
Shopping Cart
View Cart
Check Out
PAR30-15W PAR30-15W, Dimmable PAR30-15W Narrow

Warm White (XIW) bulb is shown

"Halogen" White (XHW)
bulb is shown above
Features
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Note: This PAR30 lamp can be dimmed
with an external dimmer		       3 Year Warranty    This LEDtronics item uses the highest grade Cree XR-E Series LEDs that meet LM-79 and LM-80 requirements
All Series under this Category:

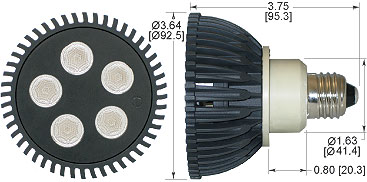

  PAR30-15W_120A_D 3¾" dia., Dimmable PAR30 Style Lamp
PAR30-15W_120AMD Series
Dimmable, Sunlight-Visible 2800K "Halogen-Style" Warm White1S852M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Total End Foot
Candles, cd		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
PAR30-15W-XHW-120AMD
(120Vac,White,2700K,Dimmable 7R) 		$84.00ea 1 120VAC12 typ, 15 max0.107 A31.2374.5 lm665cd0.93--2700-2800K    Halogen Warm White40°–45°

Dimmable, Sunlight-Visible 3000K Warm White2S852M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Total End Foot
Candles, cd		Power FactorCRIColor Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
PAR30-15W-XIW-120AMD
(120Vac,W.White,3000K,Dimmable7RoHSVC) 		$84.00ea 1 120VAC13.4 typ, 15 max0.120 A31.8426 lm709cd0.94863200K    Warm White45° ±3°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Easy Installation Using Existing E26 Edison (or E27 240VAC European Option) Base Sockets
  • White LED: Up to 50,000+ hrs (5.7yrs+)
  • Solid-State, Fast Turn On, No Power Surge
  • High Shock / Vibration Resistant
  • Major Power Savings up to 80%
  • CE Compliant
  • Equivalent Brightness of Up to a 66W Halogen Bulb
  • Indoor Use Only
  • 120VAC and Is Designed as a Direct Retrofit into Most PAR-30 Fixtures
  • High CRI 80+
  • No Harmful UV or IR
  • RoHS Compliant
  • Ambient Operating Temperature Range: ~-22°F to ~+113°F [~-30°C to ~+45°C]
 Applications:
  • Track, Lighting, Accent Lighting
  • General, Architectural and Landscape Lighting
  • Display Case fixtures and Cabinet Lighting
  • Signage and Back Lighting
  • Aerospace Lighting Systems
  • Industrial OEM Equipment Lighting
  • Bio-Medical and Medical Applications
Incandescent Reference Data for Watts / Lumens / Candela
STYLE MFR MFR PART No. LENS TYPE Volts Watts Lumens End Candela Efficacy Beam Angle
PAR30 SYLVANIA PAR30-120V-66W CLEAR HALOGEN 120VAC 67 W 754.3 lm 1373.0 cd 11.3 37.7°
