LED Bulbs, PAR30, E26/E27 Base, Hi-Power, Soft Flood
Consumes less than 12 Watts
Replace 60W-70W Halogen — 85~265VAC — Series PAR30A-9WMX
100° Beam, Non-Dimmable (On/Off Only) • Direct Incandescent Replacement with Up to 80% Energy Savings
Ideal for Use with Alternate or Renewable Energy Resources – Solar & Wind Power
Major Reduction in Energy Use, Reduces Light Pollution, "Dark Skies" Initiative Compatible
Shopping Cart
View Cart
Check Out
UL PAR30 Med. Flood; E26 PAR30 Narrow Spot; E26,E27 PAR30 Med. Flood; E26,E27 PAR30 Med. Flood; Dimmable; E26 PAR30 Wide Flood; E26,E27
Features
Applications
Contact Us
Email This Page
National Stock Number




  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




Note: This model is for use with standard ON/OFF switches only,
not with a dimmer. Use with any type of dimmer, relay or other
current/voltage control circuit device will VOID WARRANTY.		    3 Year Warranty
All Series under this Category:
  PAR30A-9WMX PAR30-Style Wide-Angle Beam
PAR30A-9WMX Series   100°-Beam PAR30-Style E26/E27-Based Light Bulb, Halogen Replacement

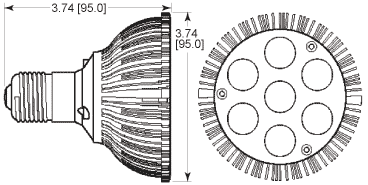

Dimensions in inches [mm]
Semi-Frosted Diffusing Lens; Sunlight-Visible 3000K Warm White PAR30A-9WMX1S798M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		DescriptionCRIColor Temp.
(Kelvin)		LED Emitting
Color		Lens
Type/Color		Full Viewing
Angle (2θ½)
PAR30A-9WMX-XIW-001W-S
(9W,85~265Vac,8 pcMX6/2700-3300K,SIL{29RE)
$65.45ea 1 85-265VAC
(Tested@120VAC)		10.0 typ0.130A45452 lm185cdSilver Body802700K~3300K    Warm WhiteSemi-Frosted102°

Semi-Frosted Diffusing Lens; Sunlight-Visible 6000K Pure White PAR30A-9WMX2S798M
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, AEfficacy
lm/W		Total
Lumens		Maximum
Candela		DescriptionCRIColor Temp.
(Kelvin)		LED Emitting
Color		Lens
Type/Color		Full Viewing
Angle (2θ½)
PAR30A-9WMX-XPW-001W-S
(85~265Vac,P.White,5500-6500K,SIL)
$65.45ea 1 85-265VAC
(Tested@120VAC)		11.6 typ0.148A49572 lm223cdSilver Body805500K~6500K    Pure WhiteSemi-Frosted104°

All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Easy Installation: Using Existing 26mm Edison Base or E27 European Base Sockets
  • White LED Operating Life: Up to 50,000+ hrs (5.7+ years)
  • Input Voltage: 85-260VAC
  • Designed as a Direct Retrofit into Most PAR30 Fixtures
  • Even Lighting: High Intensity / No Halation
  • Safety Assurance: RoHS
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Applications:
  • Track, Lighting, Accent Lighting
  • Floodlight/Security Light/Emergency Light
  • General/Architectural and Landscape Lighting
  • Display Case Fixtures and Cabinet Lighting
  • Signage and Back Lighting
  • Aerospace Lighting Systems
  • Industrial OEM Equipment Lighting
  • Bio-Medical and Medical Applications
Benefits:
  • Major Power Savings: Up to 90% Compared to Incandescents.
  • High Shock / Vibration Resistant.
  • No Harmful UV or IR.
  • Reduces Light Pollution, Enhances Night Vision.


Incandescent Reference Data for Watts / Lumens / Candela
STYLE MFR MFR PART No. LENS TYPE Volts Watts Lumens End Candela Efficacy Beam Angle
PAR30 SYLVANIA PAR30-120V-66W CLEAR HALOGEN 120VAC 67 W 754.3 lm 1373.0 cd 11.3 37.7°
