LED Light Bulb, MR16 Style GX5.3 BiPin, 12VAC/DC, Less than 5 Watts
Replaces 20-30Watt Halogens • Spotlight or Floodlight Beams
Direct Drop-In Replacement in MR16 Fixtures — Up to 90% Power Savings
Ideal for use with Alternate and Renewable Energy Resources like Solar & Wind Power
Major Energy Reduction, Reduces Light Pollution, "Dark Skies" Initiative Compatible
Shopping Cart
View Cart
Check Out
MR11 30-LED, 12Vdc MR16 Hi-Pwr, 12Vac or 12-24Vdc MR16 42-LED, 12Vac/dc–24Vac/dc MR16 42-LED, 12Vdc MR16 Hi-Pwr, 12Vac/dc

Architectural lighting
MR16-styled LED bulbs:
High-powered White MR16 TrackLEDs.™ These new LED bulbs have two big advantages over other MR16 LED bulbs. First, they are engineered to handle the variations in voltages that may accompany "noisy" or "dirty" AC or DC power supplies, eliminating burnout from incoming voltage that are higher than the lamp's capacity. Second, the new MR16 LEDs remove the need to stock a variety of MR16 LED bulbs to coordinate with different voltages that may present with 12V – 24V DC power supplies, simplifying procurement and inventory procedures.

CAUTION: Designed for use with 12-Vdc or AC Low-Frequency 50Hz or 60Hz Transformers. High-Frequency Electronic Driver/Transformers designed for high wattage Halogen lamps may cause early failures in these MR16 LED lamps.
Features
Applications
Contact Us
Email This Page
National Stock Number



  FOR MORE INFORMATION, PLEASE CLICK A BUTTON BELOW:




All Series under this Category:
  MR16-3W_S Standard-width beam
  MR16-3W_M Medium-width beam
MR16-3W_S Series   Narrow/Standard-Beam (15°-25°) High Power 3-LED MR16
Warm White, 3000K or Cool White, 6000K–6500K Color Temp, Standard-Beam Spotlight, 12VAC/DC1S1698M

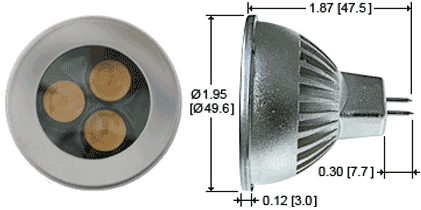

Dimensions for "MR16-3W-___-102S" lamps

Dimensions in inches [mm]
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, ATotal
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorOperating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
MR16-3W-XIW-102S
(12Vac/dc,W.White,3000k,170lm,15deg {RE}) 		$19.95ea 1 12VAC/DC
(Test @ 12VAC)		3.9 typ, 4.1 max0.418 A155 lm442 cd39.70.78~-30°C to ~+50°C3000K    Warm White15°–20°
MR16-3W-XCW-102S
(12Vac/dc,C.White,6000k,210lm,15degRoHS) 		$19.95ea 1 12VAC/DC
(Test @ 12VAC)		4.0 typ, 4.1 max0.425 A165 lm985 cd41.20.78~-30°C to ~+50°C6000K    Cool White15°–20°

Cool White, 6000K–6500K Color Temp, Standard-Beam Spotlight, for "Noisy Current" 12VAC/DC-to-24VDC2S1698M
Dimensions for "MR16-3W-___-002S" lamps

Dimensions in inches [mm]
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, ATotal
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorOperating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
MR16-3W-XCW-002S
(12Vac/dc &24Vdc,White 6500K {RE}) 		$19.95ea 1 12VAC/DC–24VDC Op.
(Test @ 12VAC)		3.6 typ, 4.1 max0.398 A125 lm680 cd350.72~-30°C to ~+50°C6500K    Cool White20°–25°

Other Colors available for large quantity orders
MR16-3W_M Series   Medium-Beam (30°-50°) High Power 3-LED MR16
Warm White, 3000K or Cool White, 6000K–6500K Color Temp, Medium-Beam Spotlight, 12VAC/DC1S1921M

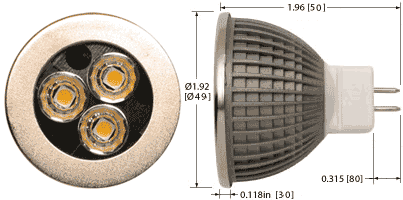

Dimensions for "MR16-3W-___-102M" lamps

Dimensions in inches [mm]
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, ATotal
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorOperating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
MR16-3W-XCW-102M
(12Vac/dc,C.White,6000k,210lm,30degRoHS) 		$19.95ea 1 12VAC/DC
(Test @ 12VAC)		3.9 typ, 4.3 max0.418 A155 lm442 cd39.70.78~-30°C to ~+50°C6000K    Cool White30°–35°
MR16-3W-XIW-102M
(12Vac/dc,W.White,3000k,170lm,30degRoHS) 		$19.95ea 1 12VAC/DC
(Test @ 12VAC)		3.6 typ, 4.3 max0.389 A113 lm298 cd31.30.78~-30°C to ~+50°C3000K    Warm White30°–35°

Warm White or Cool White, Color Temp, Medium-Beam Spotlight, for "Noisy Current" 12VAC/DC-to-24VDC2S1921M
Dimensions for "MR16-3W-___-002M" lamps

Dimensions in inches [mm]
  Electrical-Optical Characteristics (Ta = 25°C)
CLICK TO ORDERPART NO.
(DESCRIPTION)		PRICEMIN BUYInput Voltage, V
(typ)		Energy Used,
W		Current, ATotal
Lumens		Total End Foot
Candles, cd		Efficacy
lm/W		Power FactorOperating
Temperature		Color Temp.
(Kelvin)		LED Emitting
Color		Full Viewing
Angle (2θ½)
MR16-3W-XCW-002M
(12Vac/dc &24Vdc,C.White 6500K RoHS) 		$19.95ea 1 12VAC/DC–24VDC Op.
(Test @ 12VAC)		4.0 typ, 4.3 max0.457 A139 lm197 cd34.70.72~-30°C to ~+50°C6500K    Cool White45°–50°
MR16-3W-XIW-002M
(12Vac/dc &24Vdc,W.White 3000K {RE}) 		$19.95ea 1 12VAC/DC–24VDC Op.
(Test @ 12VAC)		4.3 typ, 4.3 max0.502 A126 lm150 cd29.20.72~-30°C to ~+50°C3000K    Warm White45°–50°

Other Colors available for large quantity orders
All specifications and pricing subject to change without notice.
 Features:
  • Three Year Lamp Warranty
  • Major Power Savings
  • Constant Light Output
  • Solid-State, Fast Turn On, No Power Surge
  • Replaces 20- to 30-Watt Incandescent MR16
  • White LED Operating Life: 50,000+ hrs (5.7+ years)
  • High Shock / Vibration Resistant, Both Electrical and Mechanical
  • Designed for Linear and Switching "Noisy" or "Clean" Power Supplies
  • Easy Installation Using Existing MR16 Fixture
  • Glass covered lens, Metal body
  • Stays cooler then other 4-Watt MR16 bulbs
  • Ambient Operating Temperature Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
 Applications:
Bust of George Washington, by Jean-Antoine Houdon
Incandescent Lumens & Spherical Candle Power (SCP) for Reference with LED Bulbs
Incandescent Total Lumens Spherical Candela Efficacy
lm/W		 Incandescent Total Lumens Spherical Candela Efficacy
lm/W
INCAND,S6,4W,CLR 7.83 0.623 2.02 INCAND,15W, A15, White FRST 90 6 6.00
INCAND,S6,6W,CLR 33.80 2.69 5.20 INCAND,25W, G16-1/2, CLR 169 13.5 6.76
INCAND,S6,7W,CLR 29.75 2.36 4.27 INCAND,25W, A15, White, DIFF 179 14 7.16
INCAND,11W, S14, CLR 65 5.2 5.91 INCAND,25W, A15, White, FRST 101 8 4.04
INCAND,11W, S14, White, DIFF 44 3.5 4.00 INCAND,B11/E14,40W,FRST 342.80 27.28 8.40
INCAND,B11/E14,15W,CLR 54.71 4.353 3.65 INCAND,60W, A19, White, FRST 820 48 13.66
INCAND,B11/E14,25W,CLR 221.90 17.66 8.81 INCAND,60W, A19, CLR 870 58 14.50
INCAND,B11/E14,60W,CLR 545.10 43.37 8.96 INCAND,25W, 25T10F, FRST 220 17 8.80
